Android TV Box with RTC | Cost-Effective Digital Signage Player for Portrait & Landscape Display

Specifications:

  • Android 10 AOSP OS: This digital signage player runs on Android 10 AOSP, offering a clean, bloatware-free operating system optimized for advertising displays.
  • Cost-effective 4K advertising player for single-screen signage: This Allwinner H313 player delivers hardware-accelerated 4K decoding at 60fps with VP9, H.265, and H.264 support. Offers exceptional value as a budget-friendly digital signage player for single-screen deployments in retail stores, fast-food restaurants, and shopping mall displays without sacrificing video quality.

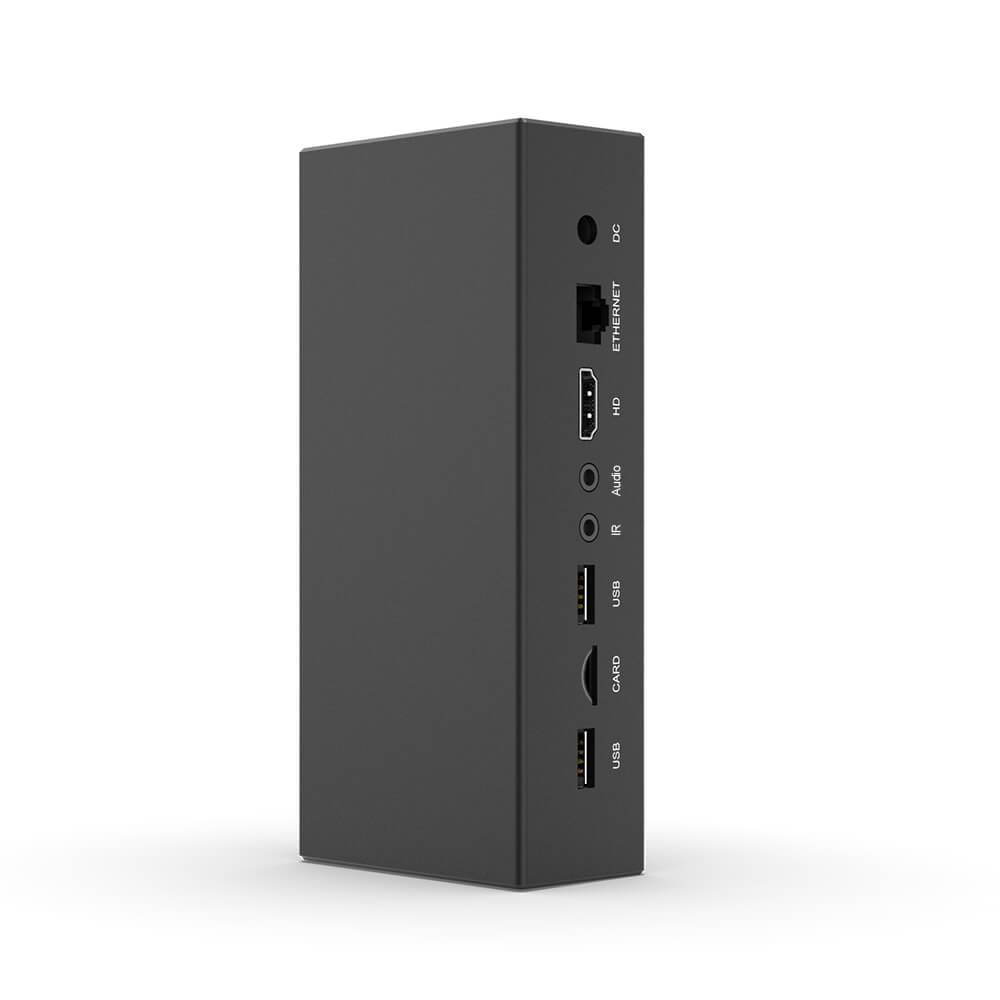

  • Narrow-bar form factor with side-aligned ports for tidy installation: This media player features a compact narrow-bar design with square-shaped ends that mounts neatly behind advertising screens. All I/O ports are positioned on the same side for convenient cabling, and simplified maintenance. Optional wall mount bracket and IR extension cable provide flexible installation options.
  • Built-in RTC with landscape and portrait screen rotation: This 4k android tv box features built-in RTC for scheduled auto power on/off, reducing energy waste and extending device lifespan. Supports screen orientation, allowing flexible content display for digital menu boards, vertical advertising screens, and informational kiosks.
  • Dual-band WiFi 2.4G/5G with BT 5.0 for reliable wireless connectivity: This android media player features 2.4G/5G dual-band WiFi (802.11ac) plus BT 5.0 for wireless remote control and accessory pairing. Ensures consistent network connectivity.
  • Rich I/O interfaces with HDMI CEC: This advertising android box offers comprehensive connectivity including TF card slot, HDMI 2.0a output with HD CEC support, 2x USB 2.0, audio output, and 100M Ethernet RJ45.
  • OEM & ODM Service: Supports complete firmware personalization including custom boot logo, custom launcher UI, and pre-installed startup apps-ideal for brand owners and signage integrators.
SKU: RDA001 Category:

Parallel serial ports Design Digital Signage Player Screen Rotation supported Dual WiFi Android TV Box with RTC

Parallel Serial ports design digital Signage Player runs on android 10 os, builting with 2.4G/5G Dual WiFi and bluetooth, can set up screen rotation degree in the setting menu, supports both portrait and landscape display, with RTC clock. Can used as a signage player or a normal android tv box.

android advertising player box
android tv box for vertical display
android tv box with audio jack
android stb for digital signage
android box for digital signage
a001 android tv box

Parameters:

Hardware
CPUAllwinner  Quad Core ARM Cortex A53
GPUG31 OPenGL3.2
MemoryDDR3：2GB
FlasheMMC：16GB
WiFiIEEE 802.11 b/g/n/ac , 2.4g/5g Dual WiFi+BT5.0
MoudlePlastic : Black  Color Or electroplating
UI（Frame cache）1920*1080
RTC ClockSupport remote timed switch on/off
I/O1*HDMI
2*USB
1*RJ45
1*TF CARD
1*Audio
PowerDC 5V/2A；LED indicator of eye design，Working ：Blue; Standby：Red
Add functionTiming switch with RTC circuit
parallel serial ports as required
Support USB 4G communication dongle
Open source for deep cooperation customers
Compared with the advertising machine, there is only a lack of point screen interface
Software
OSAndroid 10.0
Video  Video Engine (AVE) with dedicated hardware decoders and encoders
  Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
  Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
  Video Decoding
–  VP9 Profile 2 up to 4Kx2K@60fps
–  H.265 [email protected] up to 4Kx2K@60fps,or 6K@30fps
–  AVS2-P2 Profile up to 4Kx2K@60fps
–  H.264 BP/MP/[email protected] up to 4Kx2K@30fps
–  H.263 BP up to 1080P@60fps
–  MPEG-4 SP/ASP@L5 up to 1080P@60fps (ISO-14496)
–  MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
–  MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
–  Xvid up to 1080P@60fps
–  Sorenson Spark up to 1080P@60fps
–  VP8 up to 1080P@60fps
–  AVS/AVS+ JiZhun Profile up to 1080P@60fps
–  WMV9/VC1 SP/MP/AP up to 1080P@60fps
–  JPEG HFIF file format up to 45MPPS
–  Multiple language and multiple format sub-title video support
–  MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
–  Supports JPEG thumbnail, scaling, rotation and transition effects
–  Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
AudioSupports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Audio Codec
-Two audiio digital-to-analog(DAC) channels
-Support 16-bit and 20-bit sample rate
-8kHz to 192kHz DAC sample rate
-95+/-2dB SNR@A-weight,-80+/-dB THD+N,output Level more than 0.55Vrms
-One128*24-bits FIFO for DAC data transmit
built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
ImageHD JPEG、BMP、GIF、PNG、TIF
LanguageEnglish French German Spanish Italian etc multilateral languages
Appliactions
OnlineBrowse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
AppsApps download freely form android market、amazon app store etc.
MediumLocal Media playback,Support HDD, U Disck ,TF Card .
Talk onlineSupport  SKYPE video  call ,MSN , facebook ,twitter ,QQ  etc
OthersSupport Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard

Questions on our products and services? Ask one of our professional Sales for a quick reply.

Inquiry Now
Inquiry Now

Additional information

Weight1 kg
Dimensions22 × 18 × 8 cm
