- Android Box with Amlogic S905X5M: Quad-core Cortex-A55, 6nm low-power process, 4K decoding
- Latest Android 14 AOSP OS: Smooth performance with enhanced privacy for signage deployments
- 4GB DDR4 + 32GB eMMC: Stable playback for retail displays and menu boards
- RTC + Hardware Watchdog + Screen Rotation: scheduled power, 24/7 stability, landscape and portrait display
- Rich I/O: 3x USB 2.0, USB OTG, 3.5mm audio, SPDIF, WiFi 6, 1000M LAN
- Custom firmware: supports root access, set device owner, kiosk mode, and custom launcher apps

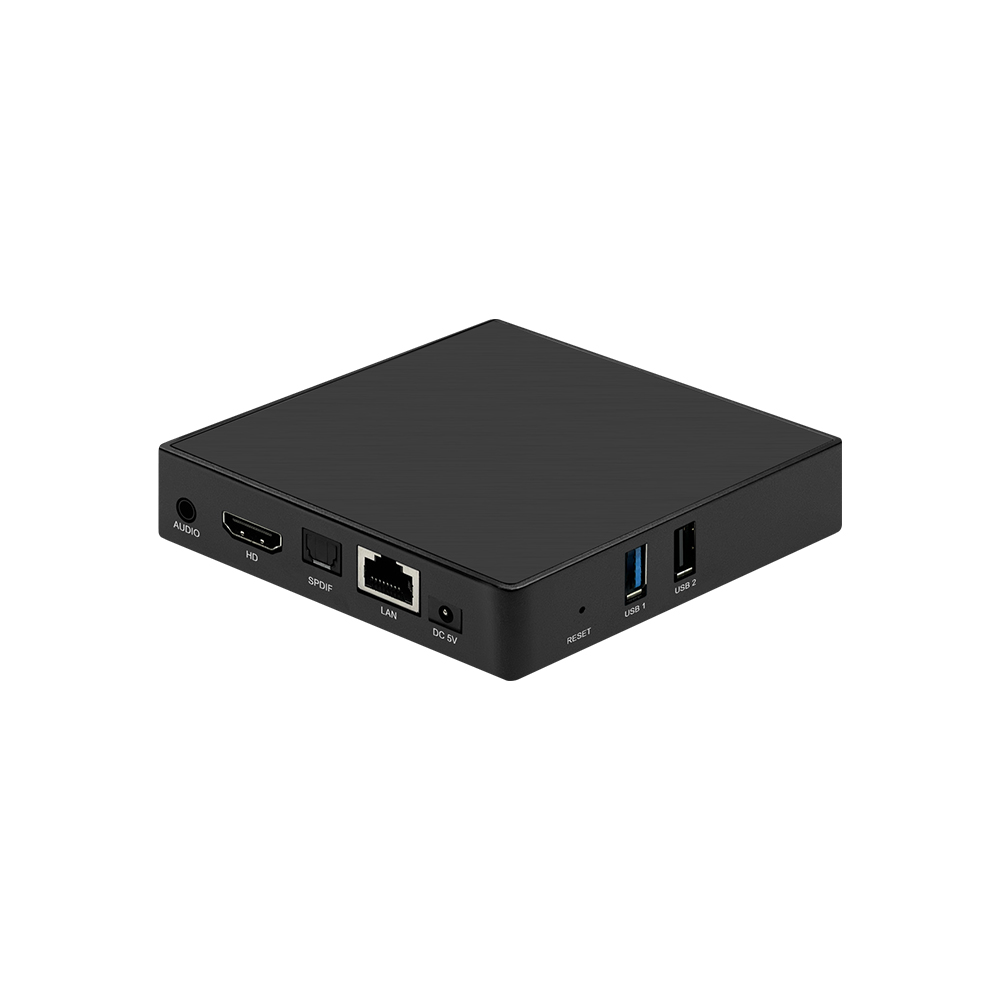

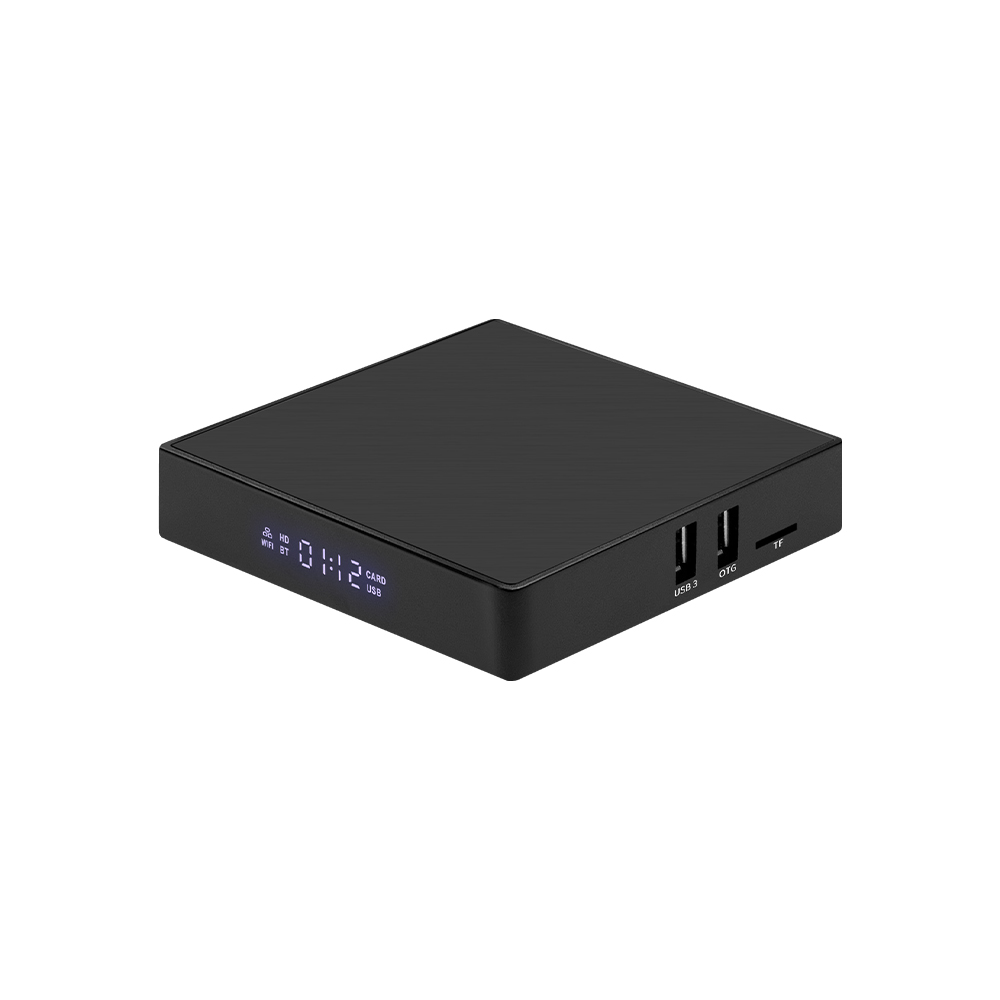

Amlogic S905X5M Android Box with Hardware Watchdog for Digital Signage Displays
Amlogic S905X5M Android Box with Hardware Watchdog
Product Overview
The Amlogic S905X5M Android Box is a cost-effective commercial signage player built for single-screen deployments that require continuous operation. Powered by a 6nm quad-core ARM Cortex-A55 CPU with ARM G310 V2 GPU and running Android 14, it decodes AV1, VP9, and H.265 up to 4K@60fps with AI-SR upscaling for HD content libraries. In a compact 97x97x21mm body, it combines RTC scheduled power, a hardware watchdog, 3x USB 2.0 plus USB OTG, and dual audio options (3.5mm headphone jack plus SPDIF optical output). It is positioned as a practical entry point into commercial signage without the cost of higher-tier chipsets.

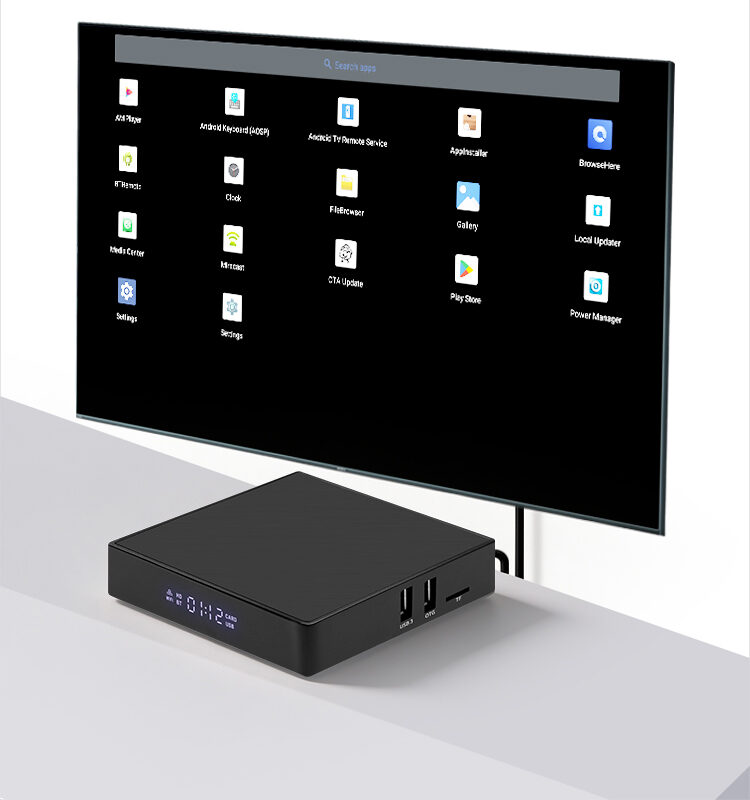

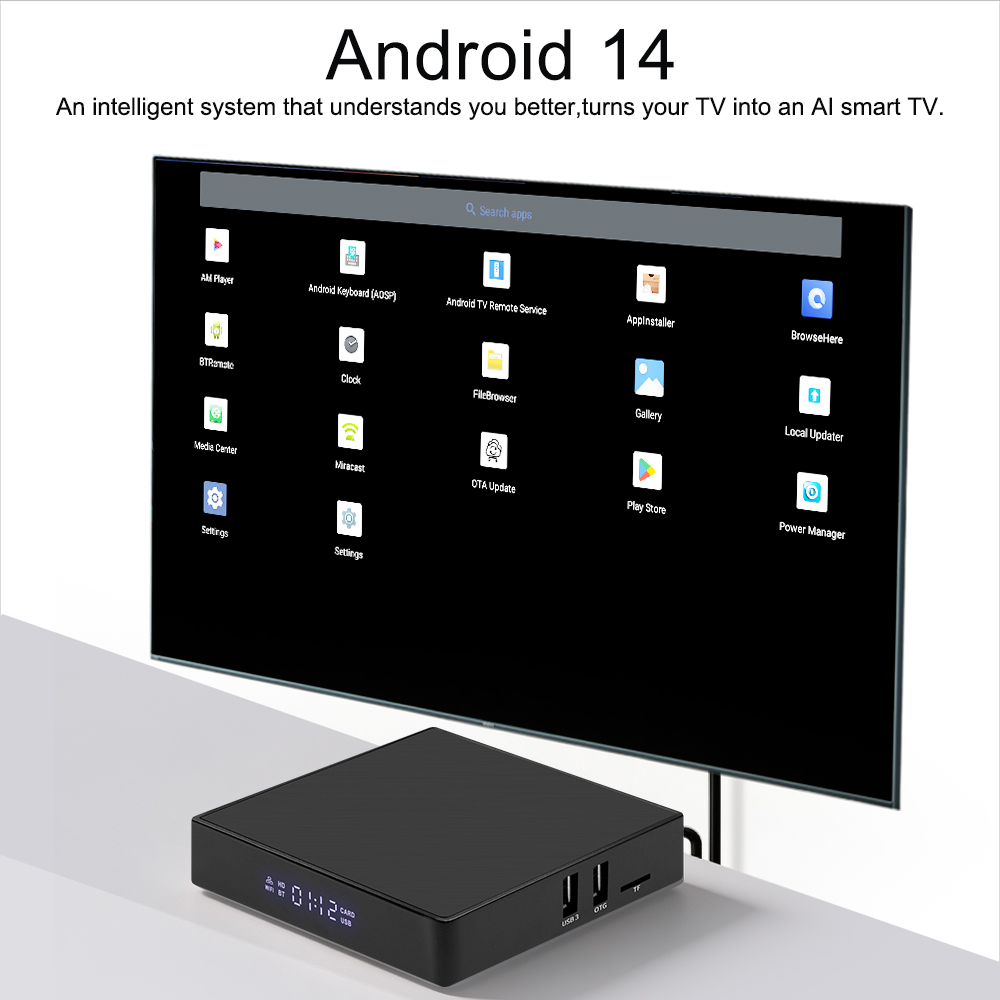

Latest Android 14 OS for Long-Term Viability
Pre-installed with Android 14 OS, this android box provides a modern software foundation for digital signage deployments. The latest OS ensures better security, improved privacy controls, and longer application support lifecycle compared to older Android versions.
6nm Quad-Core Amlogic S905X5M Processor
The Amlogic S905X5M uses a 6nm process and a quad-core ARM Cortex-A55 CPU with ARM G310 V2 GPU. It decodes AV1, VP9, H.265, and AVS2-P2 up to 4K@60fps, with AI-SR upscaling that improves 1080P content on 4K displays. The 6nm process keeps power consumption and heat output low, supporting fanless, compact installations behind the screen and long-hour continuous operation.
RTC and Scheduled Power Control
A built-in RTC module enables scheduled auto power on and off without manual intervention. Displays start and stop at preset times, reducing energy consumption and extending device lifespan. This suits retail stores, offices, and campus buildings that operate on fixed business hours and want signage to follow the same schedule automatically.

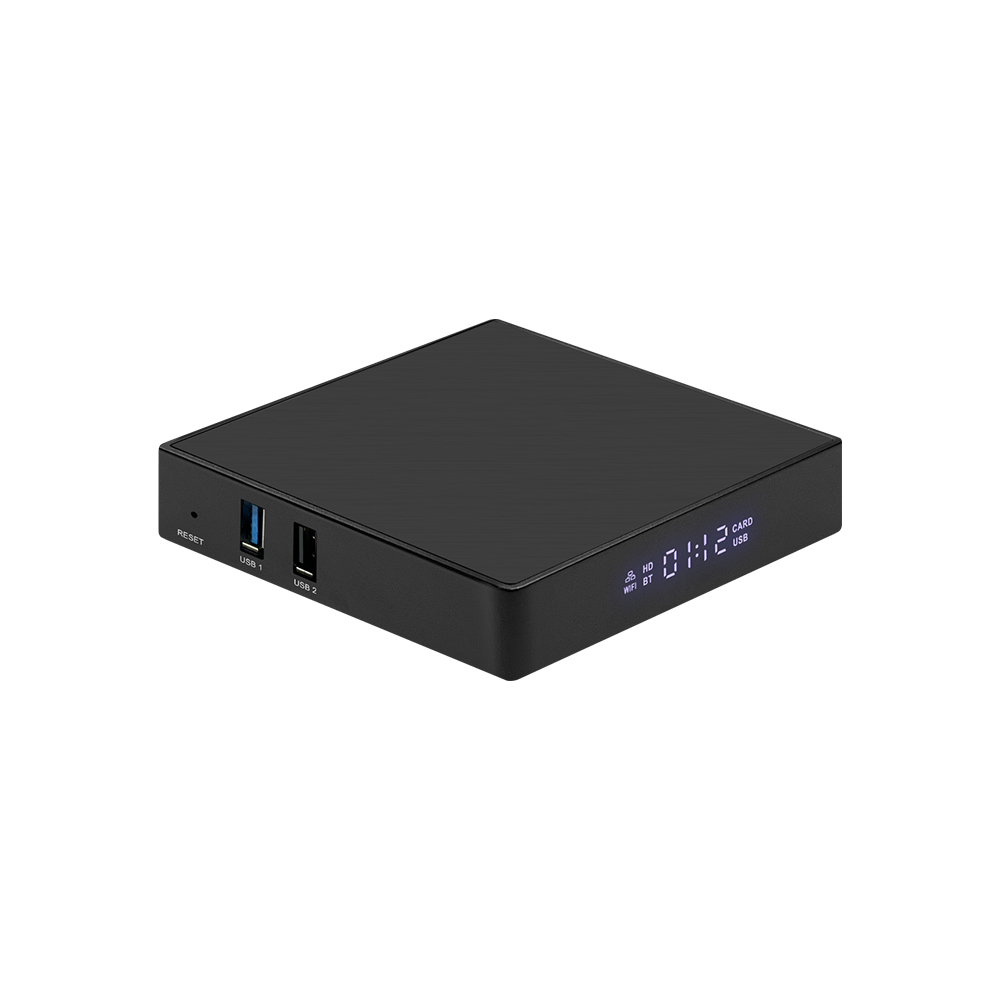

Hardware Watchdog for Unattended Stability
The hardware watchdog monitors system status and triggers an automatic reboot if the system freezes. Combined with RTC scheduling, it keeps signage running in remote or hard-to-access locations such as elevator displays and chain-store networks, reducing site visits and on-site maintenance.
Compact Design with Rich Connectivity
At 97x97x21mm, the player fits behind most displays while offering connectivity usually found on larger units. It provides 3x USB 2.0 plus 1x USB OTG (Host 2.0), allowing simultaneous connection of a U disk for content updates, a 4G dongle for network access, a keyboard or mouse for on-site debugging, and an IR receiver, so there is no need to unplug one device to use another during setup and maintenance. For audio, the 3.5mm headphone jack handles basic monitoring and small speakers, while the SPDIF optical output offers an additional digital connection option for amplifiers and soundbars that accept optical input. This gives integrators flexibility when matching the player to existing audio equipment. As a cost-effective commercial digital signage box, it is designed for single-screen deployments where essential features and reliable operation matter more than premium audio hardware.
Parameters:
| System Parameters | |
|---|---|
| OS | Android 14 |
| Main chip | Amlogic S905X5M |
| CPU | Quad Core ARM Cortex-A55 |
| GPU | ARM G310 V2 |
| RAM | 2GB/4GB DDR4 |
| ROM | 16GB/32GB eMMC |
| WIFI | Wifi6 2.4G/5G 802.11a/b/g/n/ac/ax |
| Bluetooth | BT 5.4 |
| Basic parameters | |
| Video Support(up to 4K) | AV1 ,VP9 ,H.265,AVS2-P2 Profile up to 4Kx2K@60fps H.264 AVC [email protected] up to 4Kx2K@30fps MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496) WMVNC-1 SP/MP/AP up to 1080P@60fps AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps |
| Audio Support | MP3, AAC, WMA, RM, FLAC |
| Image Support | Supports variety of image formats browsing (jpg, png, bmp etc.） |
| Extended Storage | Support TF Card |

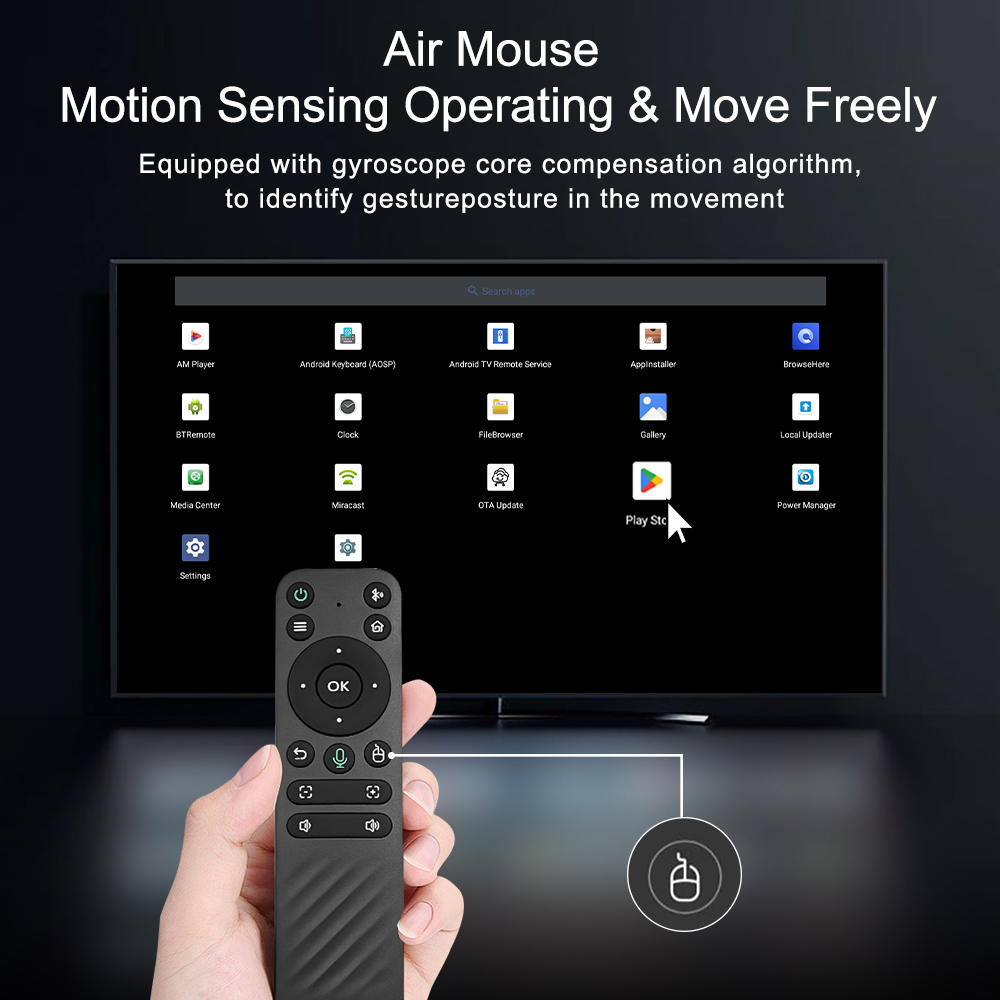

| Remote Control | External IR remote |
| RTC | Yes |
| Hardware watchdog | Yes |

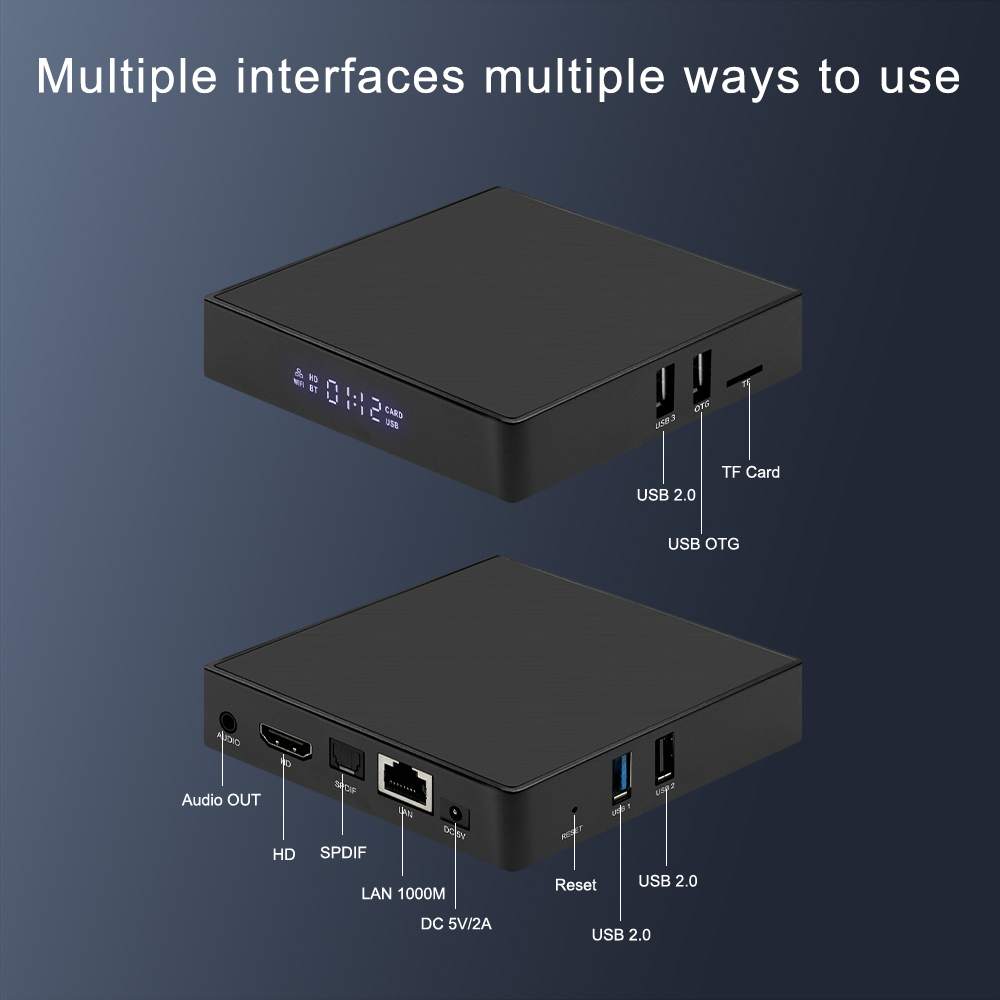

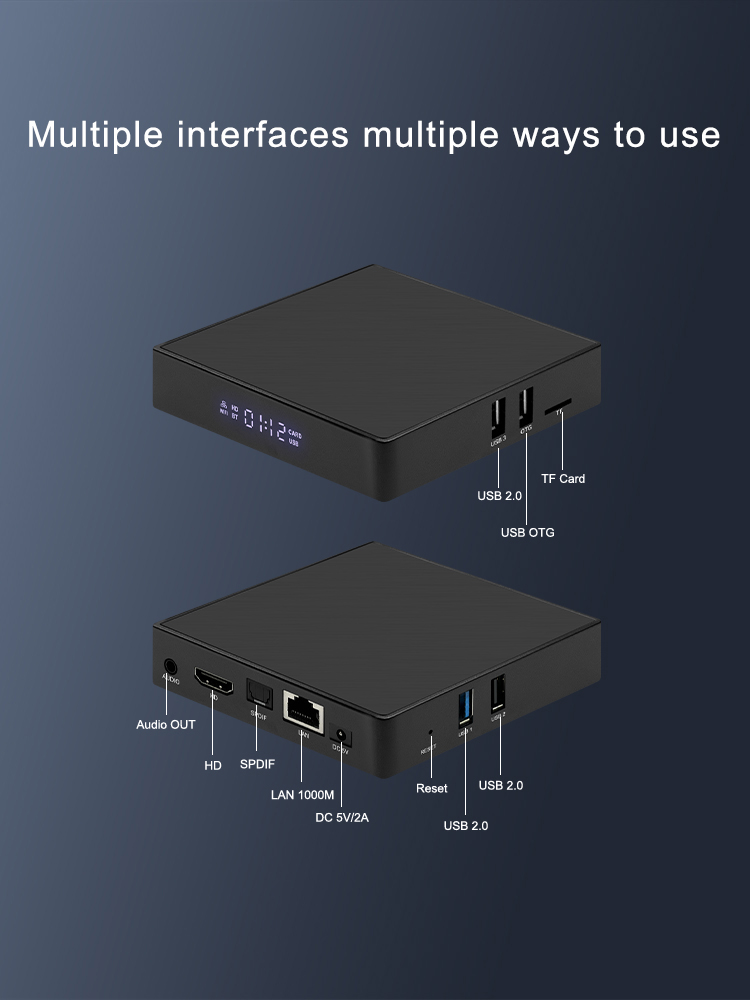

| Interface | 1*TF Card: Max 128GB |
| 1*HDMI: HDMI 2.0 | |
| 1*Earphone: Audio output, 3.5mm joint | |
| 1*Ethernet:1000M, standard RJ-45 | |
| 3*USB 2.0 | |
| 1*USB OTG: (host 2.0) | |
| 1*SPDIF: SPDIF Optical output | |
| 1* DC: 5V 2A | |
| Product Appearance | |
| Color | Black |
| Dimension | 97*97*21mm |
Digital Signage Applications:
Ideal Use Cases (Single-Screen Focus):
- Retail Menu Boards: Portrait mode support, reliable 24/7 operation with hardware watchdog auto-reboot, and cost-effective for multi-store deployments. The 3x USB 2.0 ports allow simultaneous connection of a U disk for content updates and a 4G dongle for network access, while the hardware watchdog keeps remote stores running without on-site maintenance.
- Restaurant and Cafe Menu Displays: Portrait and landscape support for digital menus and promotional content, with the 3.5mm audio jack for basic in-store audio and SPDIF available when connecting to existing amplifiers or soundbars with optical input. Compact size fits behind wall-mounted displays in dining areas.
- Hotel Lobby and Room Information Displays: Low power consumption, compact 97x97x21mm size, and modern OS for app compatibility. The hardware watchdog ensures continuous operation without on-site maintenance, and SPDIF provides an optional digital audio connection for existing lobby audio systems.
- Corporate Communications: Android 14 for future-proofing, RTC for scheduled power on/off without manual intervention, and hardware watchdog for unattended stability. Adequate for HD/4K content across meeting rooms and lobby displays.
- Small Business Signage: Cost-effective commercial features for single-screen deployments. The 3.5mm audio jack covers basic audio needs, while SPDIF adds compatibility with existing optical audio equipment when required.
- Education and Campus Displays: Reliable playback and rotation support for portrait information displays. The 3x USB 2.0 plus USB OTG allow simultaneous connection of keyboard, mouse, and content update drives, and the hardware watchdog keeps classroom signage running without IT intervention.
Less Suitable For:
- Multi-screen video walls requiring synchronized 4K playback
- Interactive AI-powered analytics applications
- 8K content delivery
- Applications that require USB 3.0 ports for high-speed external storage or data transfer (this player provides USB 2.0 only)
- Professional audio installations requiring Line Level analog output (this player provides a 3.5mm headphone jack and SPDIF optical output)
Why Choose This Commercial Signage Player?
- Built for Digital Signage Brands and Solution Providers: This compact commercial player is designed as a hardware layer for companies that own their signage software and screen supply. It supports launcher app and logo customization.
- Cost-Controlled for Multi-Site Rollouts: Signage projects across multiple locations require hardware costs that leave room for software, installation, and service. This S905X5M player provides the essential commercial functions, including RTC scheduling, hardware watchdog, portrait and landscape rotation, and multiple USB ports, at an entry-level cost, keeping project pricing competitive without compromising reliability.
- Compact for Space-Limited Installations: At 97x97x21mm, the player fits behind most commercial displays, making it suitable for slim wall mounts, menu boards, and elevator enclosures. The 6nm process keeps heat output low, supporting fanless operation in closed installations where airflow is limited and service access is difficult.
- Customizable for Software Integration and Branding: The player supports deep firmware customization, including custom boot logo, custom launcher UI, pre-installed startup apps, root access, device owner mode, and kiosk mode. It can boot directly into a signage application and display the buyer’s brand identity.
- Designed for Unattended Operation: Hardware watchdog auto-reboot and RTC scheduled power on/off reduce the need for on-site intervention, which is relevant for installations in remote stores, chain locations, and kiosks. The device is designed to recover automatically rather than require a technician visit.
- Compatible with Existing Audio Equipment: The SPDIF optical output allows connection to amplifiers and soundbars that accept optical input, while the 3.5mm headphone jack covers basic monitoring and small speakers. This provides installation flexibility for sites with existing audio equipment, without claiming professional audio performance.
OEM/ODM Services Available:
Custom boot logo and branding: Full white-label customization to match your brand identity.
Pre-installed APKs: Pre-load your own signage software and applications before shipping.
Custom launcher UI: Boot directly into your custom interface or Kiosk mode for a seamless user experience.
Volume pricing for multi-unit deployments: Competitive project pricing for system integrators and large-scale rollouts.
FAQ:
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 22 × 18 × 8 cm |
| RAM | 2GB, 4GB DDR4 |
| ROM | 16GB, 32GB eMMC |
