- Latest Android 14 AOSP OS: Pre-installed with the latest Android 14 OS, delivering smoother performance, enhanced privacy, and enterprise-grade stability—ideal for long-term digital signage deployments and remote management.
- Next-Gen Amlogic S905X5M CPU (6nm): Powered by the Amlogic S905X5M Quad-Core Cortex-A55 processor built on advanced 6nm technology, this android tv box offers high performance with low power consumption for 24/7 reliable operation.
- AI Super Resolution & HDMI 2.1b: Equipped with AI-SR upscaling technology, it intelligently enhances 1080P content to near-4K UHD quality. Combined with HDMI 2.1b output, this android box delivers stunning visuals for premium signage applications.
- Built-in RTC for Digital Signage: Features a built-in RTC (Real-Time Clock) module for precise scheduled playback and auto power on/off
- Flexible Screen Rotation Support: Supports screen rotation for both landscape and portrait mode displays, offering versatile installation options for single-screen advertising
- WiFi 6 & Bluetooth 5.4 Connectivity: Comes with the latest WiFi 6 (dual-band 2.4G/5G) and BT5.4, ensuring faster, more stable wireless transmission for seamless 4K video streaming—an essential smart tv box feature for modern digital signage.

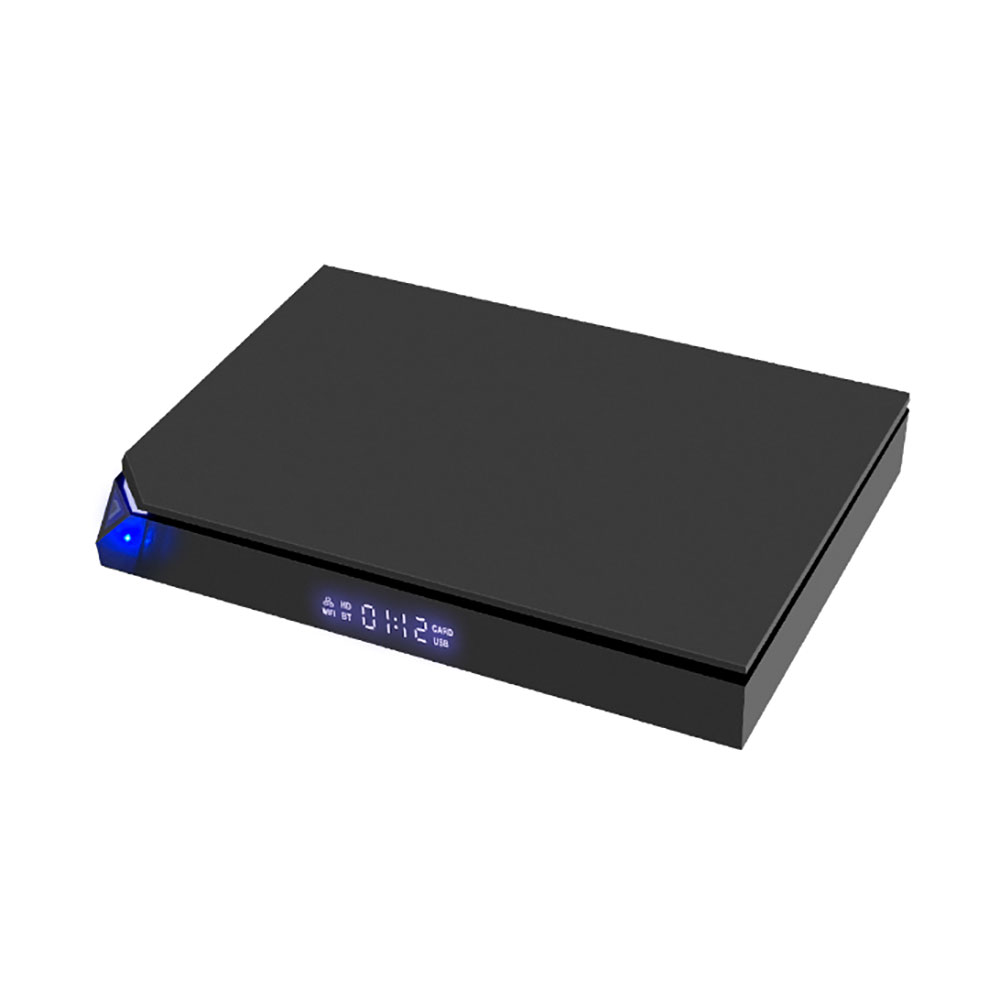

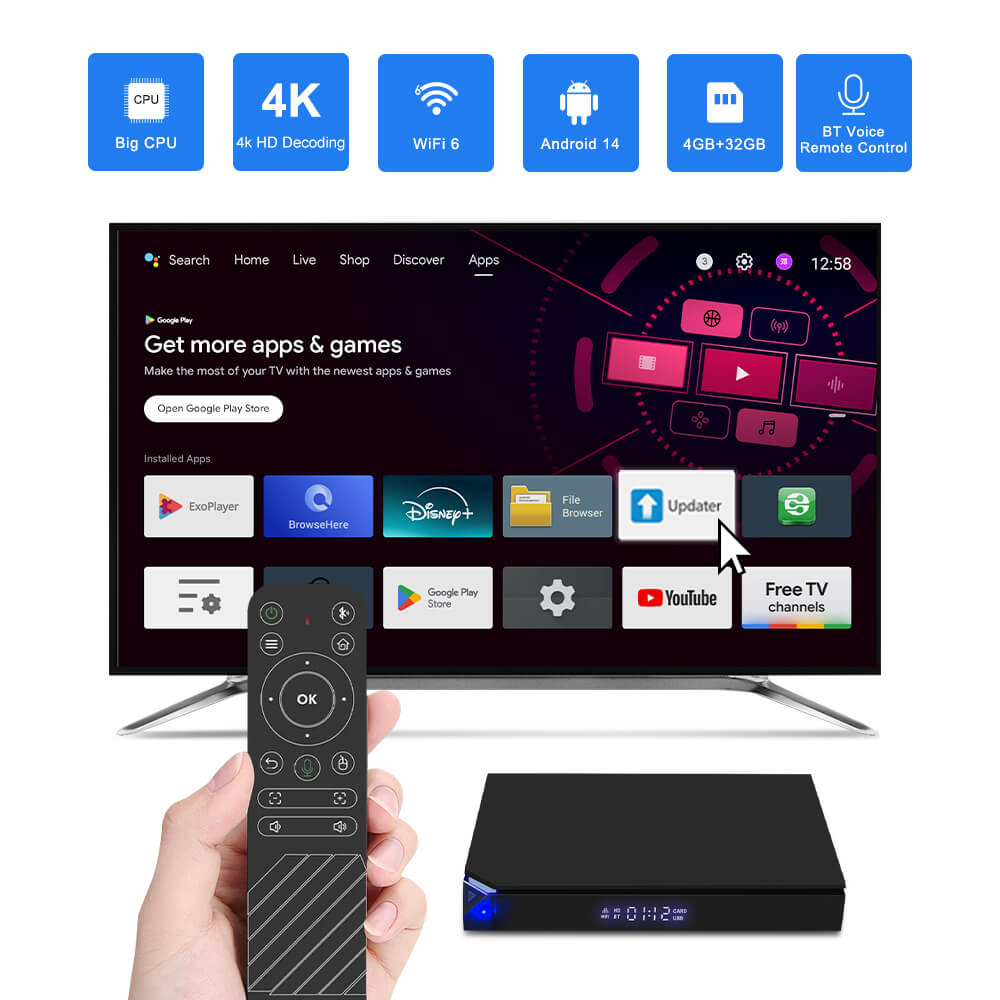

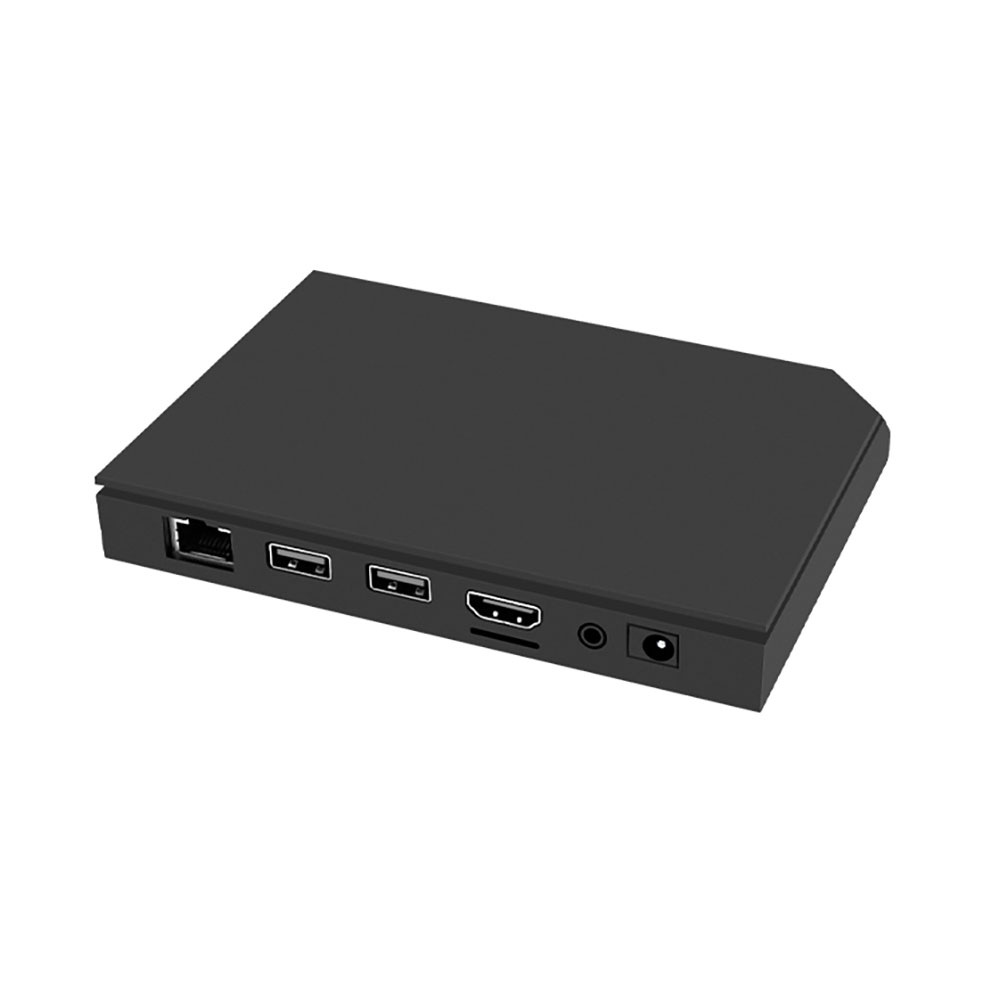

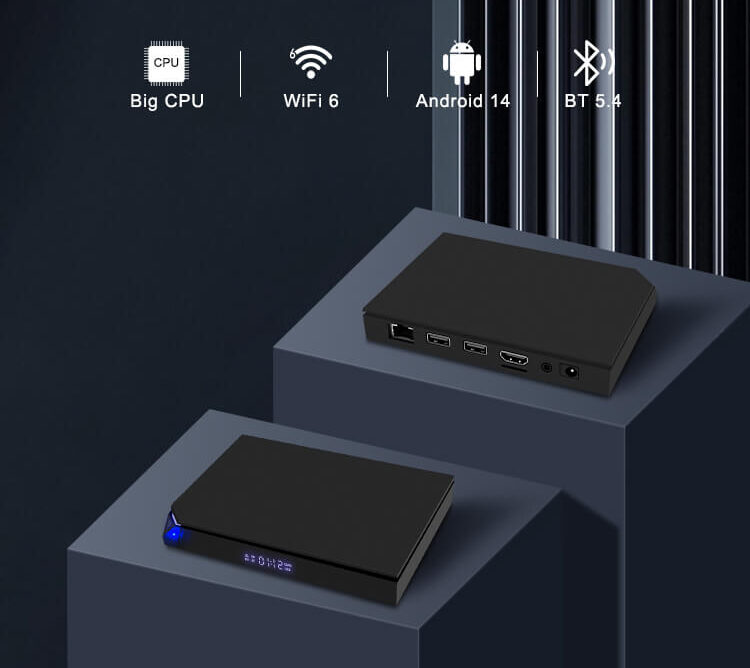

Amlogic S905X5M WiFi 6 4K Digital Signage Player Android 14 TV Box with RTC
Amlogic S905X5M WiFi 6 4K Android 14 TV Box with RTC
Product Overview
Model: Amlogic S905X5M Android 14 TV Box
Type: Entry-Level Digital Signage Media Player
Target Use: Single-Screen Digital Signage, Retail Displays, Menu Boards, Corporate Communications
Looking for an affordable Android TV box for digital signage that doesn’t compromise on essential features? This Amlogic S905X5M Android 14 TV Box is designed specifically for cost-conscious commercial deployments where reliable 24/7 operation matters more than raw processing power. Built on efficient 6nm technology, it delivers the core functionality you need for single-screen digital signage at a fraction of the cost of high-performance players like RK3588-based solutions. This S905X5M Android TV box is positioned as your most energy-efficient entry point into Android 14 digital signage—ideal for customers who need the latest OS and reliable 4K playback without overspending on unused horsepower.

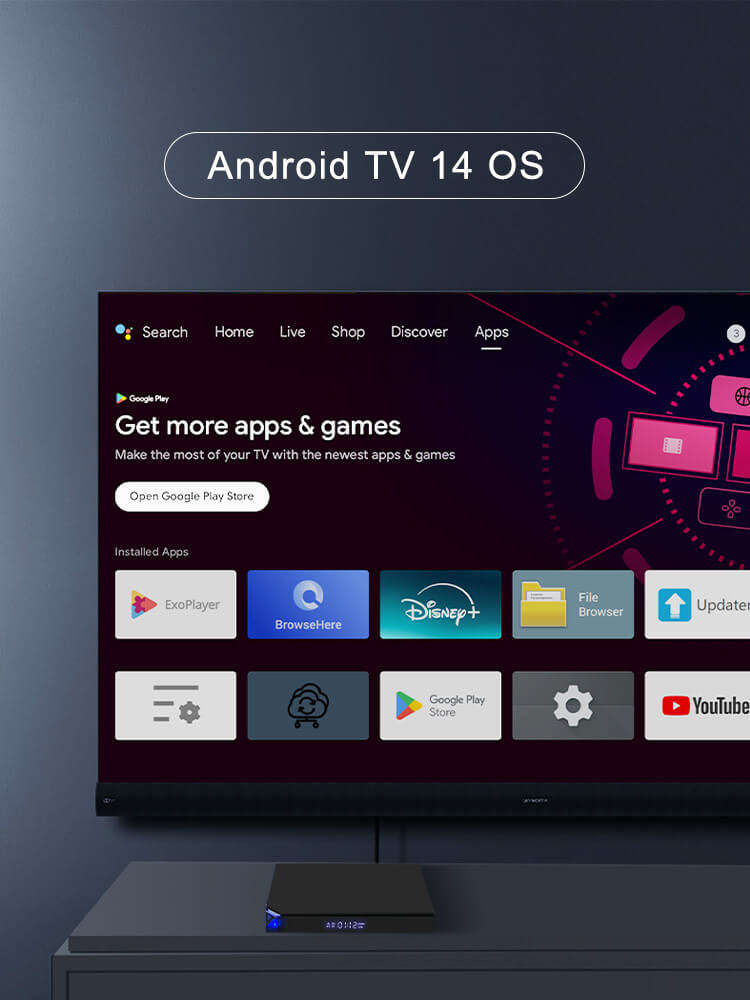

Latest Android 14 OS for Long-Term Viability
Pre-installed with Android 14 OS, this android box provides a modern software foundation for digital signage deployments. The latest OS ensures better security, improved privacy controls, and longer application support lifecycle compared to older Android versions.
6nm Amlogic S905X5M Processor: Energy Efficiency First
Built on advanced 6nm process technology, this chip consumes up to 50% less power than previous 12nm generations. For 24/7 digital signage operations, this translates to:
- Lower electricity bills for your customers
- Reduced heat output—less stress on enclosures and displays
- Cooler operation means longer component lifespan
Practical Connectivity: WiFi 6 & Gigabit Ethernet
Comes with WiFi 6 for stable wireless streaming in modern network environments and 1000M Ethernet ensures smooth 4K video content playing.
Built-in RTC for Reliable Scheduling
Includes a Real-Time Clock (RTC) module for accurate timekeeping and scheduled power on/off—essential for professional android tv box with RTC applications where network time sync may be unreliable. Features:
- Precise scheduling without internet dependency
- Reliable timestamp recording for content playback
- Professional-grade timing for commercial environments
Screen Rotation Support for Flexible Installation
Supports both landscape and portrait display orientations, allowing this digital signage player to adapt to various single-screen setups:
- Portrait mode for digital menu boards and vertical advertising
- Landscape mode for traditional video walls and information displays
- Flexible installation options for retail, hospitality, and corporate environments
Parameters:
| System Parameters | |
|---|---|
| OS | Android 14 |
| Main chip | S905X5M(amlogic) |
| CPU | Quad Core ARM Cortex-A55 |
| GPU | ARM G310 V2 |
| RAM | 2GB/4GB |
| ROM | 16GB/32GB |
| WIFI | Wifi6 802.11a/b/g/n/ax/ac |
| Bluetooth | BT 5.4 |
| Basic parameters | |
| Video Support(up to 4K) | AV1 ,VP9 ,H.265,AVS2-P2 Profile up to 4Kx2K@60fps H.264 AVC [email protected] up to 4Kx2K@30fps MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496) WMVNC-1 SP/MP/AP up to 1080P@60fps AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps |
| Audio Support | MP3, AAC, WMA, RM, FLAC |
| Image Support | Supports variety of image formats browsing (jpg, png, bmp etc.） |
| Extended Storage | Support TF Card |

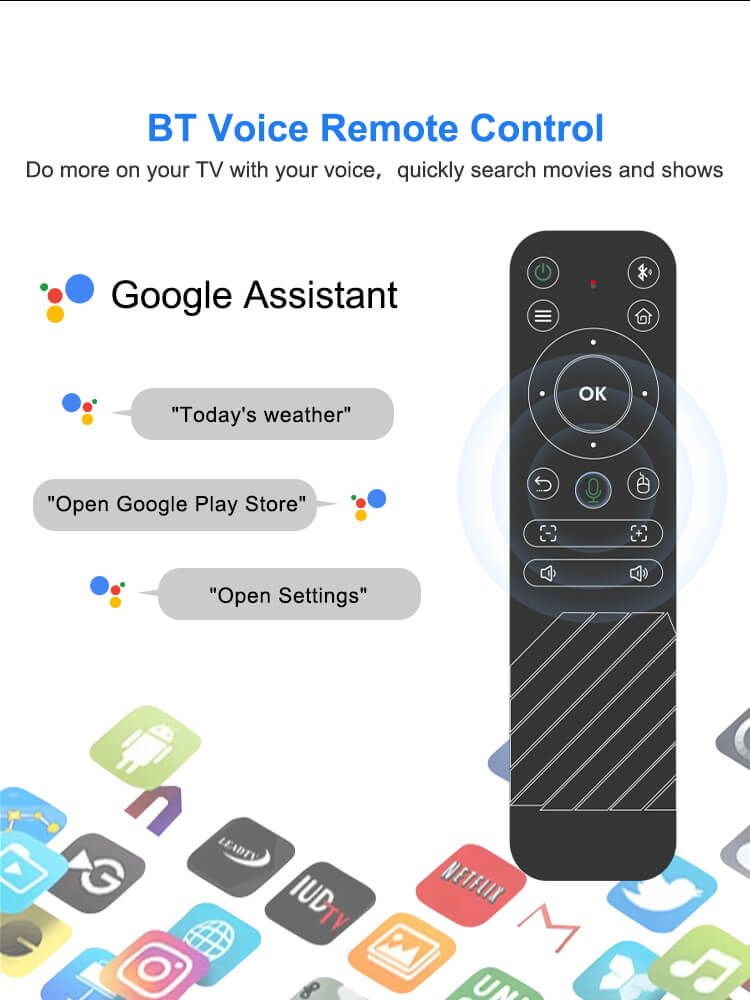

| Remote Control | External IR remote |

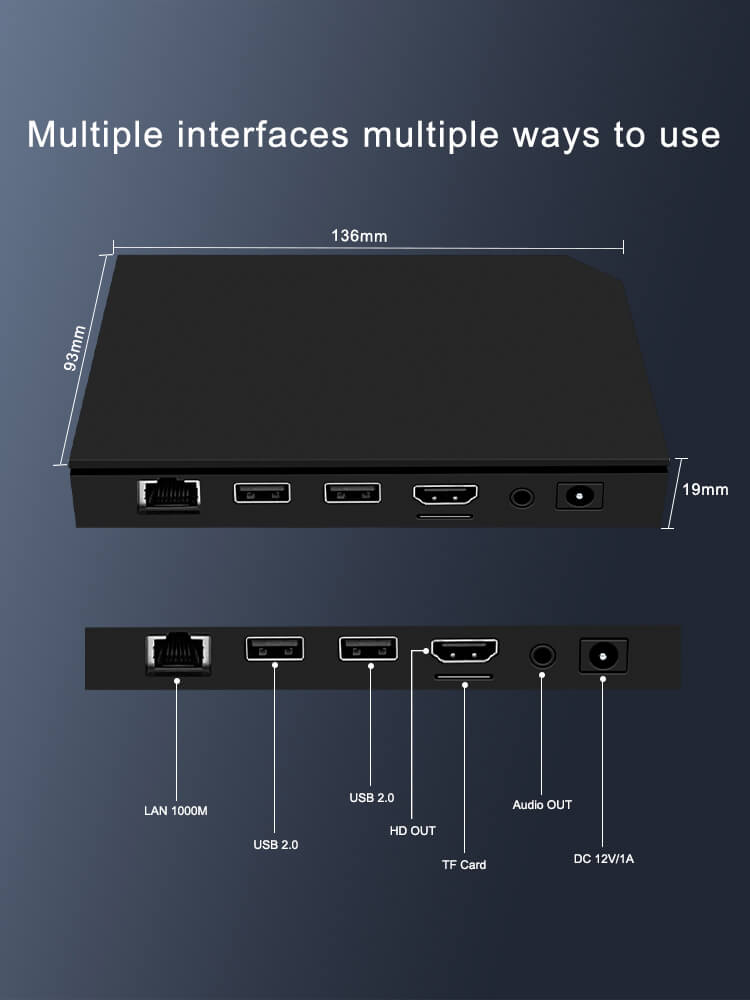

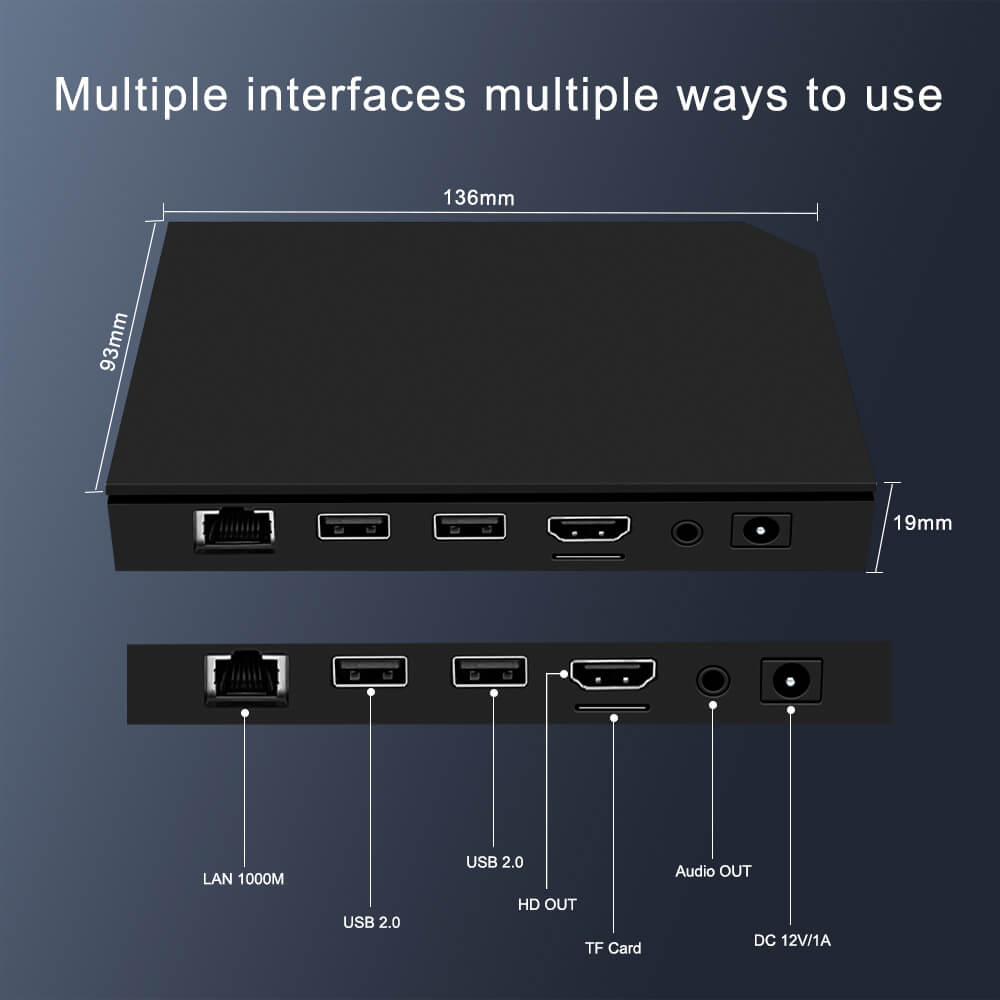

| Interface | 1*HDMI 4Kx2K@60fps max resolution output |
| 1*Digital display | |
| 1*Earphone: Audio output, 3.5mm joint | |
| 1*Ethernet:1000Mbps | |
| 2*USB 2.0 | |
| 1*TF Card | |
| 1 * IR&BT RX | |
| 1*DC 12V/1A | |
| Package | |
| Colour | Black |
| Dimension | 136*93*19mm |
Digital Signage Applications:
Ideal Use Cases (Single-Screen Focus):
- Retail Menu Boards: Portrait mode support, reliable 24/7 operation, cost-effective for multi-store deployments
- Corporate Communications: Android 14 for future-proofing, RTC for scheduled updates, adequate for HD/4K content
- Hotel Room Information: Low power consumption, compact size, modern OS for app compatibility
- Small Business Digital Signage: Entry-level pricing, essential features, no wasted processing power
- Education Displays: Reliable playback, rotation support for portrait information displays
Less Suitable For:
- Multi-screen video walls requiring synchronized 4K playback
- Interactive AI-powered analytics applications
- 8K content delivery
- Applications requiring USB 3.0 data transfer speeds
Why Choose This Entry-Level Player?
- For Cost-Conscious Deployments: When your customer needs digital signage across 50+ locations and every dollar counts, this S905X5M Android box delivers the essential features without the premium price tag of higher-end processors.
- For Energy-Sensitive Installations: The 6nm process means significantly lower power consumption—ideal for single display which require long time running.
- For HD Content Libraries: If your customer’s content is primarily 1080P but they want the flexibility of 4K displays, the AI-SR upscaling adds genuine value without requiring content re-creation.
- For Android 14 Requirements: Some enterprise customers now mandate the latest Android OS for security compliance. This is your most affordable entry point into Android 14 for digital signage.
OEM/ODM Services Available:
- Custom boot logo and branding
- Pre-installed APKs
- Custom launcher UI
- Volume pricing for multi-unit deployments
FAQ:
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 22 × 18 × 8 cm |
| RAM/ROM | 2GB/16GB, 4GB/32GB |
