Amlogic S905Y4 Android Signage Player Box with RTC | 4K AV1 Decoding, Rotatable Display Support, Optional 4G LTE

Specifications:

  • 4K AV1 Hardware Decoding: Amlogic S905Y4 12nm processor with native AV1, VP9, H.265, and H.264 support. Delivers 4K@60fps playback with up to 30% bandwidth savings compared to H.265.
  • Built-in RTC for Scheduled Playback: Accurate timekeeping for automated operation: As an Android TV Box with RTC, it supports scheduled advertising, automatic startup, timed playback and unattended operation.
  • Screen Rotation: Supports Ultra HD 4K output and flexible screen rotation at 0°, 90°, 180° and 270°, allowing both landscape and portrait installations for retail, hospitality and public information displays.

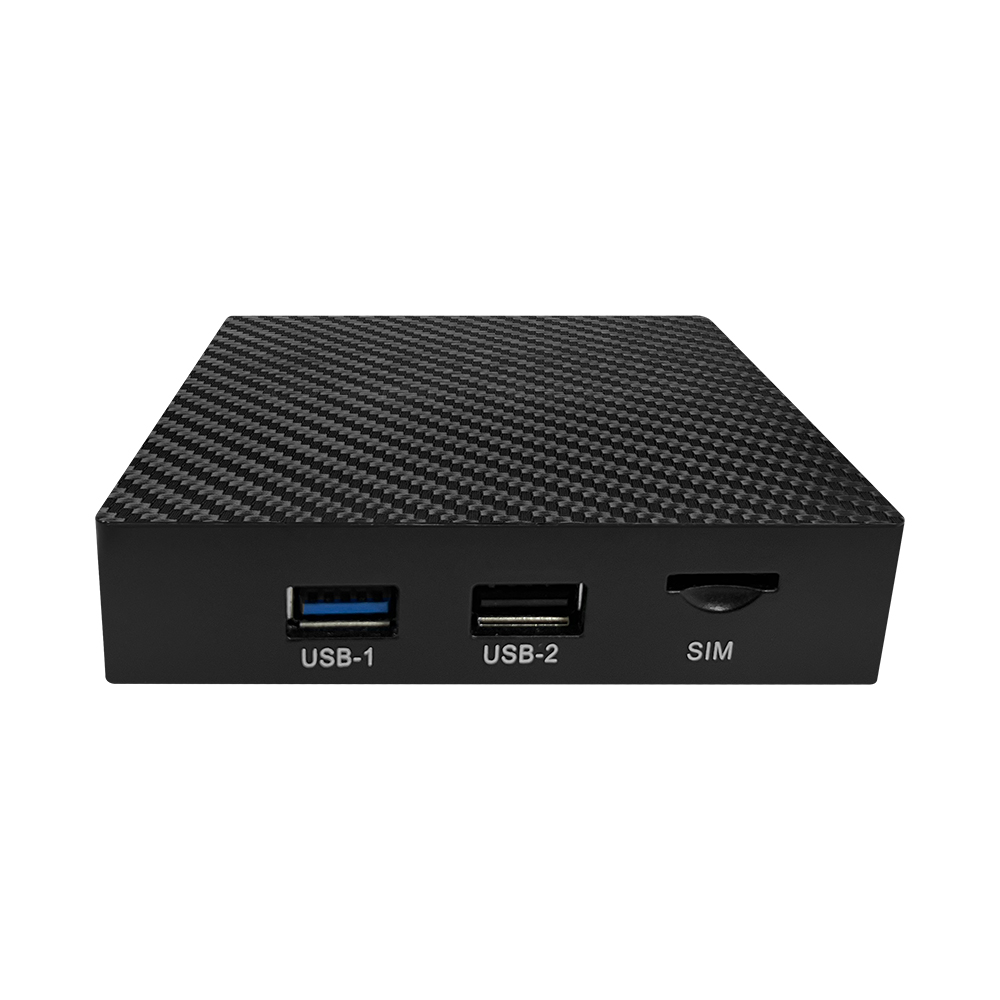

  • Optional 4G LTE Module: SIM card slot for optional 4G LTE cellular connectivity. Perfect for pop-up retail, outdoor signage, and locations without reliable Wi-Fi or wired infrastructure.
  • Compact Connectivity-Ready Design: Slim plastic enclosure with fanless operation. Ports: 1x HDMI Out, 1x USB 3.0, 1x USB 2.0, TF card slot, dual-band Wi-Fi (1T1R), Bluetooth 4.2, and 100M Ethernet.
SKU: RDS70S905Y4 Category:

Amlogic S905Y4 4K Android Signage Player Box with RTC

The Amlogic S905Y4 Android Signage Player is a compact, cost-effective digital signage solution. Built in 12nm S905Y4 processor, this Android box delivers hardware-accelerated AV1 decoding—enabling high-efficiency 4K video playback with reduced bandwidth consumption. Whether deployed in retail stores, restaurant, corporate lobbies, or Elevator advertising, this player combines professional signage features with flexible connectivity options.

root tv box amlogic

Android 11 AOSP – Stable & Customizable： Powered by Android 11 (AOSP) for reliable performance and seamless compatibility with leading CMS platforms. The open-source base enables OEM customization for white-label projects, ensuring flexibility for enterprise deployments and branded signage solutions.

amlogic s905y4 tv box

Amlogic S905Y4 – 12nm Efficiency with Native AV1 Decoding: Powered by Amlogic’s advanced 12nm quad-core ARM Cortex-A35 processor, the S905Y4 delivers exceptional power efficiency for 24/7 digital signage operation. Native hardware decoding for AV1, VP9, H.265, and H.264 ensures smooth 4K@60fps playback while reducing bandwidth costs by up to 30% compared to H.265. Designed for compact form factors, this processor enables fanless, low-power deployments ideal for indoor signage applications.

android box 4k

4K AV1 Hardware Decoding – Future-Ready Video Performance: Native AV1, VP9, H.265, and H.264 hardware decoding delivers stunning 4K@60fps video playback with exceptional efficiency. AV1 support reduces bandwidth consumption by up to 30% compared to H.265, making it ideal for high-quality digital signage content without increased network costs.

amlogic android tv box with rtc

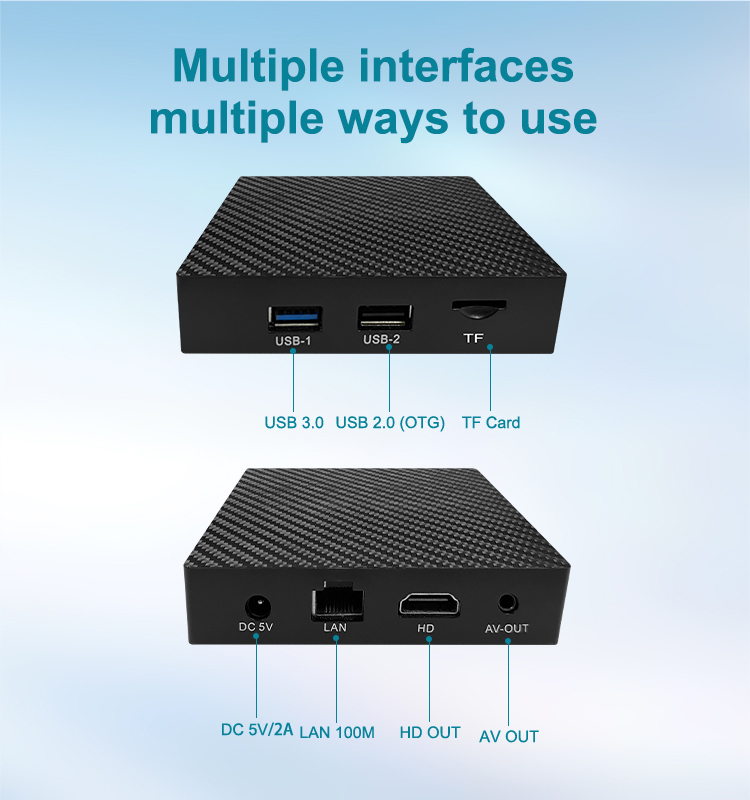

Comprehensive I/O – Flexible Connectivity for Any Deployment: 1x USB 3.0 and 1x USB 2.0 for peripherals and content updates. TF card slot for local storage expansion up to 128GB. Dual-band Wi-Fi (2.4GHz/5GHz), Bluetooth 4.2, and 10/100M Ethernet provide versatile networking options. Optional 4G LTE module available for cellular connectivity.

Parameters:

System Parameters
OSAndroid 11
Main-ChipAmlogic S905Y4
CPUQuad core ARM Cortex-A35
GPUARM G31 MP2
RAM2GB
ROM16GB
WIFI2.4G/5G IEEE.802.11a/ac/b/g/n 1T1R
RTCSUPPORT AUTO POWER ON/OFF
4G ModuleOptional
BluetoothBT 4.2
Basic parameters
Multi-Media− AV1 [email protected] up to 4Kx2K@60fps − VP9 Profile-2 up to 4Kx2K@60fps − H.265 HEVC [email protected] up to 4Kx2K@60fps − AVS2-P2 Profile up to 4Kx2K@60fps − H.264 AVC [email protected] up to 4Kx2K@30fps − MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) − WMV/VC-1 SP/MP/AP up to 1080P@60fps − AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps − MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) − MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) − Multiple language and multiple format sub-title video support − MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) − Supports JPEG thumbnail, scaling, rotation and transition effects − Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4 and *.jpg file formats
Audio SupportMP3,AAC,WMA,RM,FLAC etc.
Image SupportJPEG Baseline interleaved, max resolution up to 8176×8176
Extended StorageSupport TF Card and Hard Disk

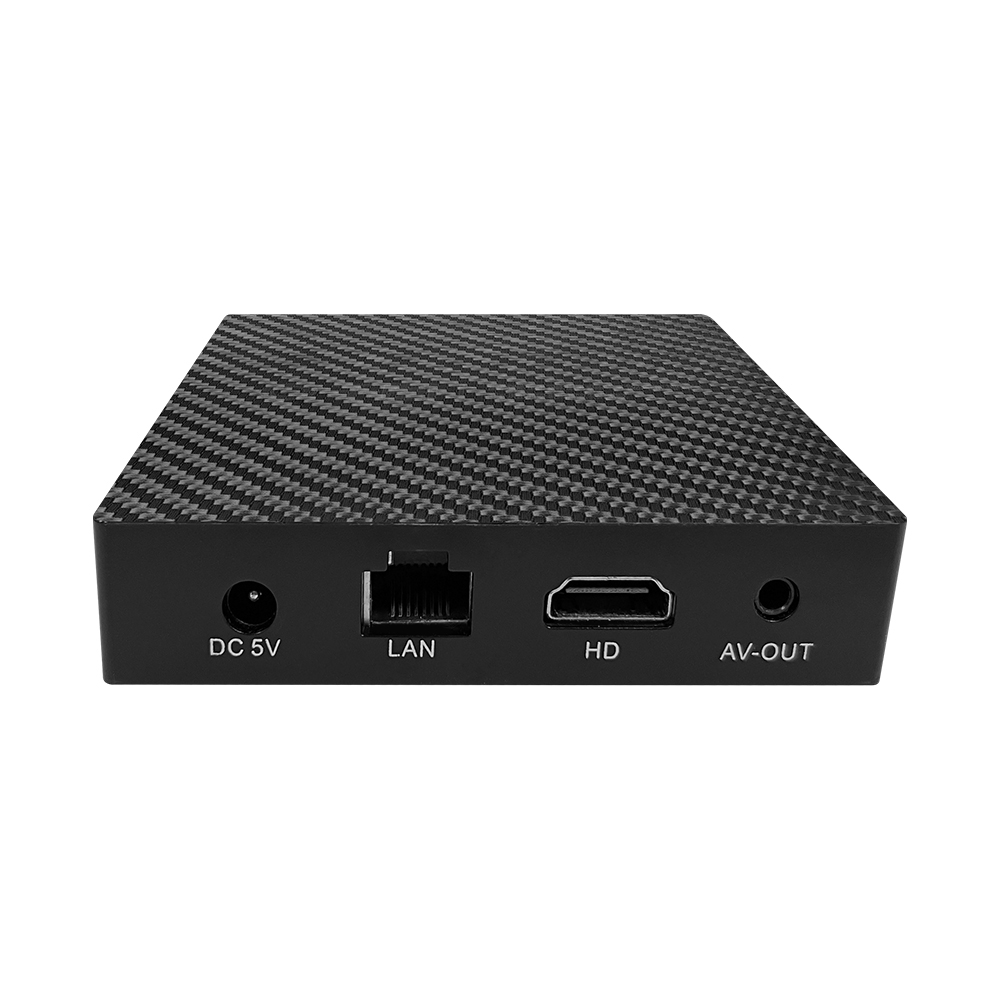

Interface1*TF Card: Max 128GB
1*HDMI: HDMI OUT 4kx2k@60max
1*USB 3.0
1*USB OTG: (host 2.0)
1*Earphone: Audio out
1*Ethernet:100M, standard RJ-45
1* DC: 5V 2A
Support RTC
Package
ColourBlack
Dimension97*97*21mm
Net weight126g

Ideal indoor applications:

This signage player is purpose-built for indoor environments where reliability, compact form factor, and cost efficiency are priorities.

ApplicationKey Benefits
Quick Service RestaurantsVertical menu boards with 4K video ads, hidden behind display
Retail StoresIn-aisle promotional displays, end-cap screens
Corporate LobbiesFloor directories, visitor information screens
Transportation Hubs (Indoor)Departure boards, wayfinding displays in terminals
Hospitals & ClinicsWaiting room queue management, patient education screens
Shopping MallsIndoor floor directories, promotional kiosks
Elevator AdvertisingCompact player fits inside elevator cabs
Pop-up Retail & EventsPortable signage with 4G option for temporary indoor installations
Vending Machines & Charging StationsEmbedded signage with Android flexibility

Why choose this S905Y4 signage player?

The Amlogic S905Y4 platform strikes an optimal balance between cost efficiency and modern video decoding capabilities. With native AV1 support, you gain future-ready compatibility with streaming platforms and video services adopting this emerging standard. The combination of RTC, rotatable display support, and optional 4G connectivity makes this player uniquely suited for indoor signage applications where consumer-grade streaming sticks fall short.

What is this for?

  • Retail chains requiring compact, cost-effective media players for indoor digital menu boards and promotional displays
  • System integrators deploying vertical signage in shopping malls, corporate buildings, and transportation terminals
  • Restaurant franchise operators needing reliable players for multi-location menu board deployments
  • OEM/ODM customers seeking a white-label Android signage solution for indoor commercial applications

Questions on our products and services? Ask one of our professional Sales for a quick reply.

Inquiry Now
Inquiry Now

Additional information

Weight1 kg
Dimensions22 × 18 × 8 cm
CPU

Amlogic S905Y4

RAM

2GB DDR3

ROM

16GB eMMC
