- RK3566 TV box: Built-in Rockchip RK3566 CPU, delivers exceptional processing power for seamless 4K decoding, smooth multitasking, and energy-efficient 24/7 commercial operation
- 4k tv box with RTC: for accurate timekeeping and scheduled power management, ensures reliable scheduling for digital signage, retail kiosks, menu boards, and advertisement displays requiring precise timing
- Screen rotation supported: can set at 0, 90, 180, 270 degrees in systems, supports portrait and landscape display
- Digital signage player box with 4K HDR output: Delivers stunning 4K Ultra HD output with H.265, H.264, VP9 decoding up to 4K@60fps.

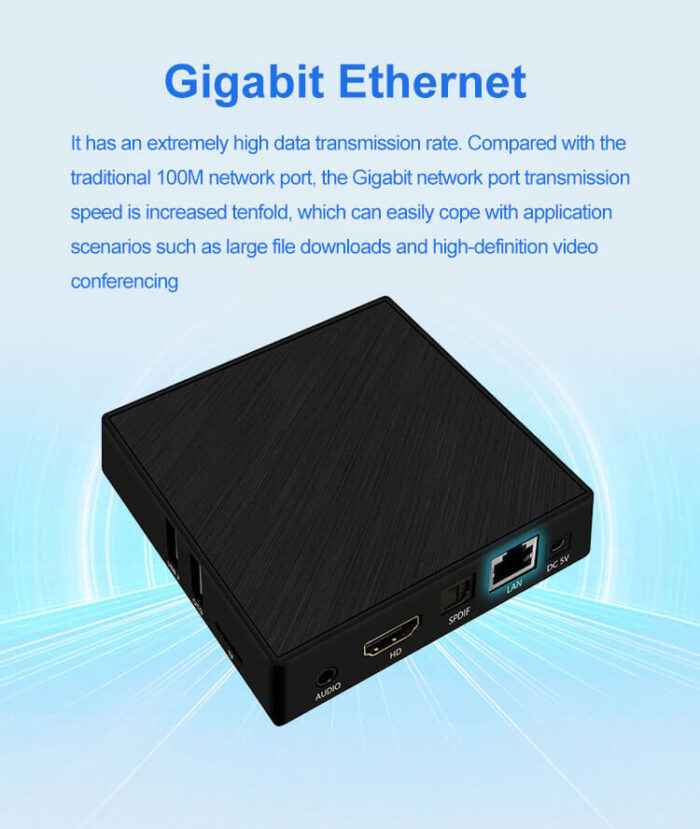

- Advertising player Box with rich I/O interfaces: Features 1x USB 3.0, 3x USB 2.0, TF card slot (max 64GB), HD 2.0 output, SPDIF, audio output, and 1000M Gigabit Ethernet RJ45. Supports external hard disk data read, making it a complete media player for digital advertising with versatile connectivity options.
- Android box with full OEM/ODM customization: Supports complete firmware modification including root access, device owner setup, startup app configuration, custom boot logo, and custom launcher UI. Works as a white-label android player box for brand owners, system integrators, and bulk buyers seeking a ready-to-deploy media player for digital advertising with unique branding and pre-configured software.
Rockchip RK3566 TV Box 4GB RAM 4K Android 11 Digital Signage Media Player with RTC
Portrait Display Supported Rockchip RK3566 TV Box 4K Android Digital Signage Media Player with RTC
RK3566 TV Box, runs on Android 11 OS, RK3566 CPU, 2GB/4GB RAM DDR4, built-in 2.4G/5GHz Dual band WiFi and BT 4.2, supports screen rotation, with RTC Clock. Supports deep customization.
Parameters:
| System Parameters | |
|---|---|
| OS | Android 11 |
| CPU | RK3566(Rockchip) |
| GPU | ARM Mali-G522EE GPU |
| Basic Frequency | Quad-core ARM Cortex-A55 CPU |
| Buffer Memory | 2GB/4GB LPDDR4 |
| Memory | 16GB/32GB EMMC |
| WiFi | 2.4G/5G 802.11a/b/g/n/ac |
| Bluetooth | BT 4.2 |
| Basic Parameters | |
| Video Support | VP9 Profile-2,H.265 HEVC,H.264, AVC/MVC,MPEG-4 ASP,WM-V/VC-1,MPEG-2 MP/HL,MPEG-1etc. |
| Audio Support | MP3,AAC,WMA,RM,FLAC etc. |
| Image Support | JPEG Baseline interleaved,max resolution up to 8176×8176 |
| Extended Storage | Support TF Card and Hard Disk |
| Interface | ]*TF Card:Max 64GB |
| l*HDMI:HDMI 2.0 | |
| 1*USB 3.0+2*USB 2.0:Support USB hard disk data read | |
| 1*USB OTG:(host 2.0)Support USB hard disk data read | |
| 1*Earphone:Audio output | |
| 1*SPDIF:SPDIF output | |
| 1*Ethernet:1000M,standard RJ-45 | |
| 1*DC:5V2A | |
Questions on our products and services? Ask one of our professional Sales for a quick reply.
Inquiry NowAdditional information
| Weight | 1 kg |
|---|---|
| Dimensions | 22 × 18 × 8 cm |
| RAM | 2GB, 4GB LPDDR4 |
| ROM | 16GB, 32GB, 64GB eMMC |
