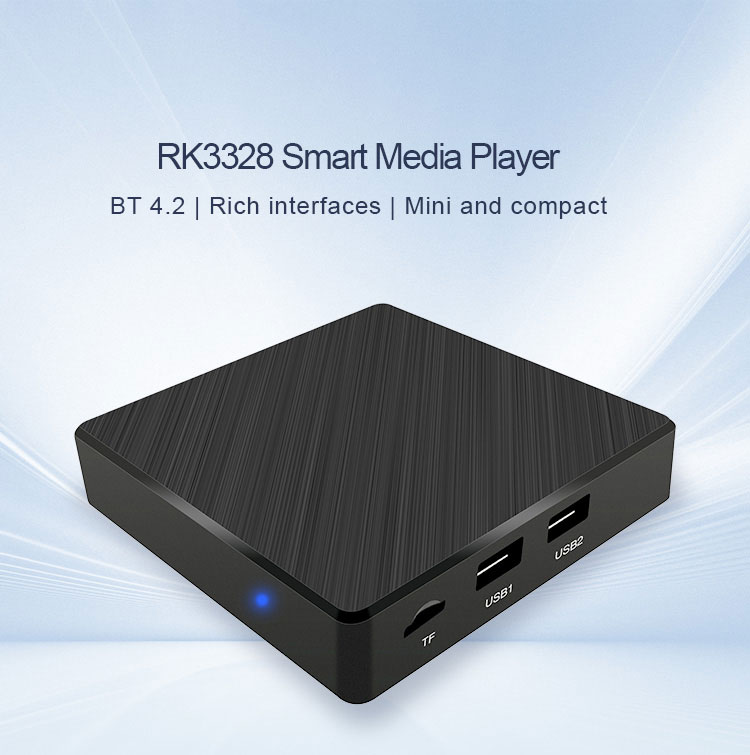

RK3328 Digital Signage Media Player Box
rockchip rk3328 android tv box
rk3328 quad core android
4k android digital signage player
android tv box with bluetooth
r48 rk3328 digital signage media player

RK3328 Digital Signage Media Player with RTC for Auto Power-On/Off & Scheduled Playback

Specifications:

    • Perfect for digital signage solutions, this Android media player built-in with RTC for flawless auto power on/off and scheduled playback, ideal for stores, restaurants, and offices.
    • A cost-effective signage media player comes with stable Rockchip RK3328 CPU, runs on Android 7 or 9, offers proven reliability for transforming standard ads into smart digital signage networks at a fraction of the cost.
    • This advertising media player supports full customization of boot logo and animation within the firmware. A perfect hardware companion for solution providers to bundle with their service, strengthening brand presence for their clients.
    • Drive stunning 4K @60Hz content to your displays with this powerful 4K media player box. Equipped with dual-band Wi-Fi, BT 4.2, and multiple audio outputs (SPDIF & AV) for seamless integration into any professional setup.
    • The essential digital signage media player hardware is ideal for budget-conscious smart screen retrofits and high-volume deployments.

This product is currently out of stock and unavailable.

SKU: RDR48 Categories: , ,

Auto Power ON&OFF Rockchip RK3328 4K Android Digital Signage Media Player

A Stable performance Android Digital Signage Media Player runs on Android 7 or 9, comes with Rockchip RK3328 Quad Core CPU,supports 4K @60fps Output, built-in 2.4G/5GHz Dual WiFi and bluetooth 4.2, 100M RJ45 Ethernet. Built-in with RTC Clock, supports auto power on/off and timing schedule to work with your digital signage software. With Screen Rotation Setting in the system, supports both portrait and landscape display itself. The cost-effective point makes it an ideal choice for Legacy Screen Upgrade at restaurant, elevator and stores etc.

rockchip rk3328 android media player
rk3328 quad core android
4k android digital signage player
android tv box with bluetooth
r48 rk3328 digital signage media player

Parameters:



System Parameters
OSAndroid 7.1
CPURK3328（Rockchip）
Basic FrequencyQuad-core ARM Cortex-A53 up to 1.5GHZ
GPUMali-450MP2,OpenGL ES1.1/2.0
Buffer Memory2GB
Memory16GB
WIFI2.4G/5G 802.11a/b/g/n/ac
BluetoothBT 4.2
Basic parameters
Video Support(up to 4k)VP9 Profile-2,H.265 HEVC,H.264 AVC/MVC,MPEG-4 ASP,WMV/VC-1,MPEG-2 MP/HL,MPEG-1 MP/HL,RealVideo 8/9/10 etc.
Audio SupportMP3,AAC,WMA,RM,FLAC etc.
Image SupportSupports variety of image formats browsing (jpg, png, bmp etc.）
Extended StorageSupport TF Card and Hard Disk
Remote ControlSupport（IR) Infrared and 2.4G wireless control
Power PerformanceAC100-240V，50/60Hz   DC 5V 2A

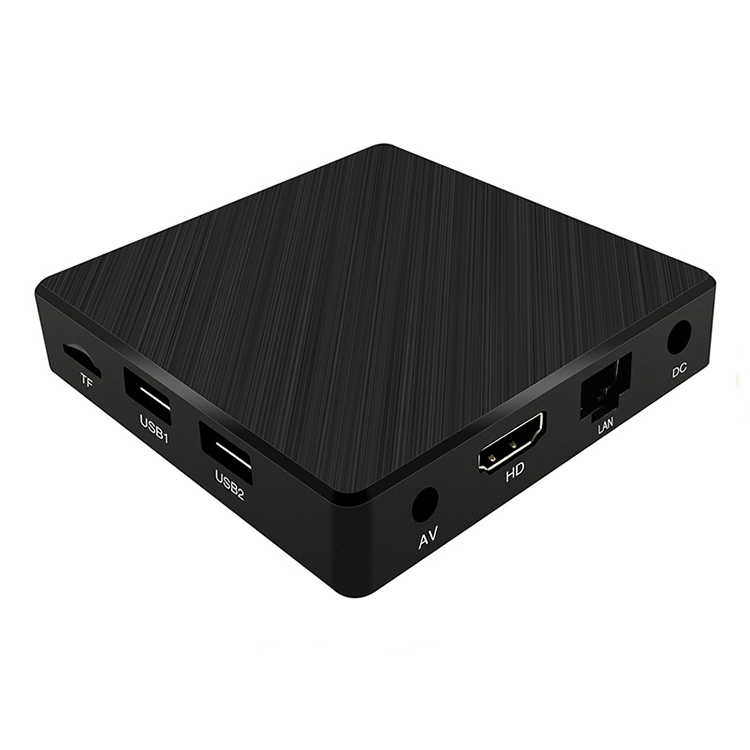

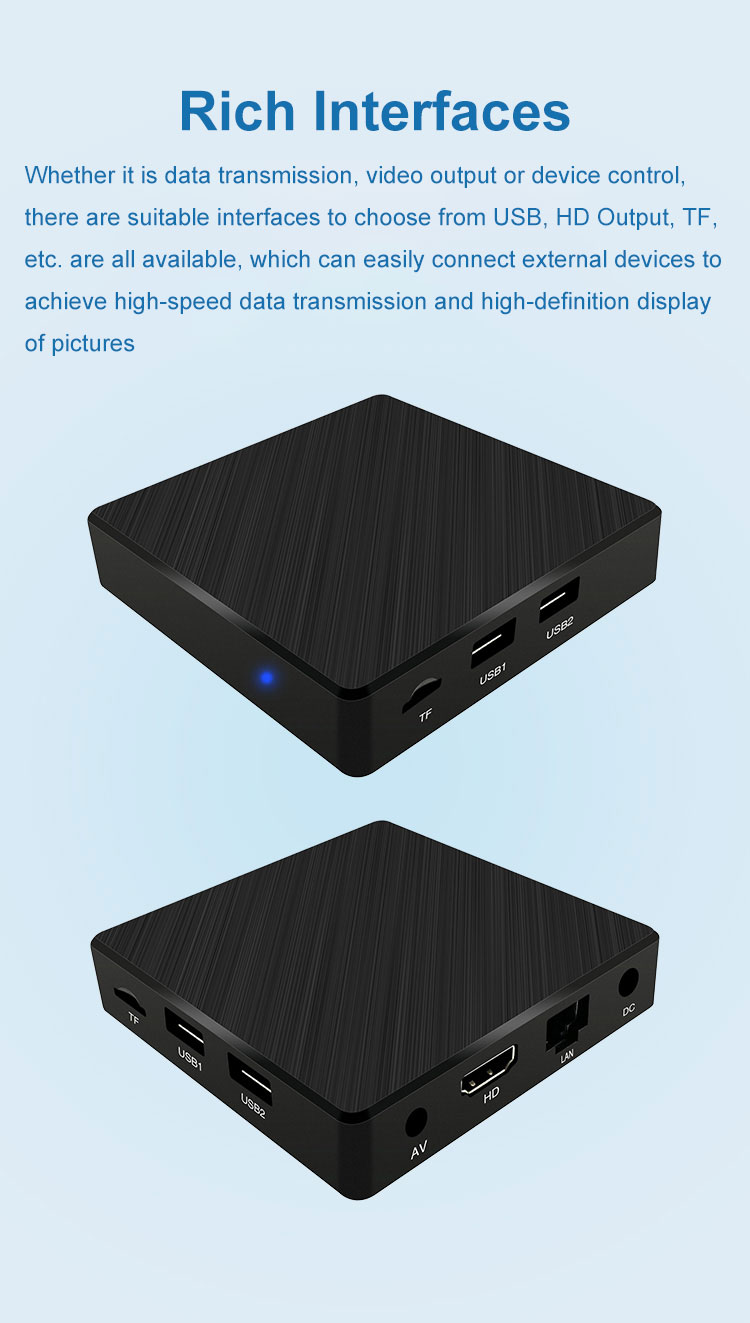

Interface1*TF Card: Max 64GB
1*HDMI: HDMI 2.0
1*USB 3.0: Support USB hard disk data read
1*USB OTG: (host 2.0)  Support USB hard disk data read
1*Earphone: Audio output & AV OUT
1*SPDIF: SPDIF output
1*Ethernet:100M, standard RJ-45
1* DC: 5V 2A
Package
ColourBlack
Dimension97*97*21mm
Net weight126g
Gift Box weight178*110*63mm
Gift Box Size378g

Additional information

Weight1 kg
Dimensions22 × 18 × 8 cm
CPU

Rockchip RK3328 Quad Core

RAM

2GB, 4GB

ROM

16GB, 32GB
