Amlogic S928X 8GB 128GB 8K Digital Signage Player Android TV Box with RTC

Specifications:

  • Unmatched 8K Visual Fidelity for Premium Signage: As a top-tier digital signage player android unit, this box is powered by the formidable Amlogic S928X-K CPU, featuring true HDMI 2.1 output for stunning 8K@60Hz playback. It effortlessly handles advanced video codecs like AV1, ensuring buttery-smooth streaming and playback of ultra-high-resolution marketing content. This makes it the ultimate video ad player for luxury brands, auto shows, and museums where breathtaking visual impact is non-negotiable.
  • Powerful AI & Processing for Intelligent Digital Signage: Go beyond simple playback with an integrated NPU delivering up to 4.0 TOPS of AI processing power. This android signage player can power interactive experiences, such as real-time audience analytics and face recognition, directly on the device. Coupled with a robust 5-core CPU and ample RAM, it effortlessly manages complex content schedules and data-heavy applications, transforming your screens into smart engagement points.
  • Strong Wireless Connectivity: Features dual-band Wi-Fi 6 (2.4G/5.8G) with speeds up to 1200Mbps, a Gigabit (1000M) Ethernet port for rock-solid wired connections, and Bluetooth 5.2 for seamless peripheral pairing, ensuring always-on, high-speed network stability crucial for digital signage networks.
  • Professional 24/7 Operation with RTC Scheduling: Engineered for reliability, this android tv box with rtc for digital signage includes a Real-Time Clock (RTC) for flawless automated power management. Schedule your entire playlist with auto power on/off and timing schedule play, ensuring your content is always displayed at the right time without manual intervention. This feature guarantees energy efficiency and uninterrupted operation for retail stores, corporate lobbies, and restaurants.
  • Ultimate Flexibility in Display & Customization: Maximize your creative freedom with support for both portrait and landscape display, perfect for any installation scenario. As a dedicated video ad player, it offers deep customization options, including custom boot logo and animation. We provide extensive OEM/ODM support to tailor the device and Android OS to seamlessly integrate with your specific digital signage software and branding requirements.
  • Elite Multimedia Features for a Cinematic Experience: Choose the S928X-K variant for a superior audiovisual experience with official support for Dolby Audio, Dolby Vision, and DTS. This, combined with dual-band Wi-Fi 6, Gigabit Ethernet, and S/PDIF output, positions this device not only as a professional signage solution but also as a elite 8k android tv box for high-end home entertainment and hospitality environments, delivering crystal-clear picture and immersive sound.

This product is currently out of stock and unavailable.

Auto Power On/Off Amlogic S928X 8GB RAM 8K TV Box Digital Signage Player Android

A high-end true 8K Digital Signage Player android box, usually used on commercial advertising with 8K UHD Videos or which required local Ai visual analytics, etc.

Key Features:

  • CPU: Amlogic S928X-J 5-Core
  • NPU:up to 4.0 TOPS
  • Android 11 OS
  • HDMI Output: HDMI2.1, max 8K@60Hz Output
  • WiFi 6 +BT5.2
  • Ethernet: 1000M RJ45 LAN
  • Interfaces: 3x USB2.0, 1x USB 3.0 OTG, 1x 3.5mm audio Jack, 1x SPDIF,TF Card Slot, DC 5V/3A
  • Application: 8K Digital Signage, 4K Video Wall, Ai Smart Digital Signage Player
8k android tv box
Amlogic S928X 5-Core CPU 8K media player
Amlogic S928X 8K Smart Ai Digital Signage Player Box
S928X 8K android tv box
8K digital signage player android

Main Applications:

  1. Luxury stores, car showrooms, museums, and other locations requiring 8K UHD promotional videos.
  2.  Video walls that require simultaneous driving of multiple 4K screens and complex content splicing.
  3. Interactive digital signage that requires local, real-time AI visual analytics (such as facial recognition and behavioral analysis) and integration with the displayed content.

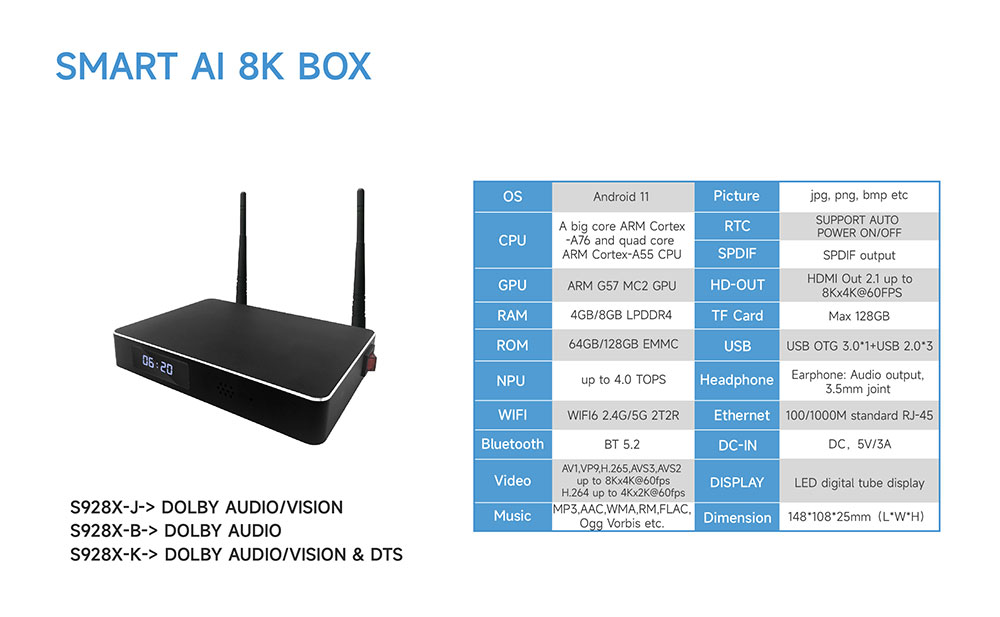

Parameters:

System Parameters
OSAndroid 11
Main-ChipS928X(Amlogic)
CPUA big core ARM Cortex-A76 and quad core ARM Cortex-A55 CPU
GPUARM G57 MC2 GPU
NPUup to 4.0 TOPS
Buffer Memory4GB/8GB LPDDR4
Memory64GB/128GB EMMC
WIFIWiFi6 2.4G/5G 802.11a/b/g/n/ac/ax 2T2R
BluetoothBT 5.2
RTCSUPPORT AUTO POWER ON/OFF
Basic parameters
Video Support− AV1 [email protected] up to 8Kx4K@60fps
− VP9 [email protected] up to 8Kx4K@60fps
− H.265 HEVC [email protected] up to 8Kx4K@60fps
− AVS3 Phase 1 up to 8Kx4K@60fps
− AVS2-P2 Profile up to 8Kx4K@60fps
− H.264 AVC [email protected] up to 4Kx2K@30fps
− MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
− WMV/VC-1 SP/MP/AP up to 1080P@60fps
− AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
− MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
− MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
− Multiple language and multiple format sub-title video support
− MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
− Supports JPEG thumbnail, scaling, rotation and transition effects
− Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file
formats
Audio SupportMP3,AAC,WMA,RM,FLAC,Ogg Vorbis etc.
Image SupportSupports variety of image formats browsing (jpg, png, bmp etc.)
Extended StorageSupport TF Card and Hard Disk
Remote ControlSupport IR RX
Power PerformanceAC100-240V,50/60Hz   DC 5V/3A

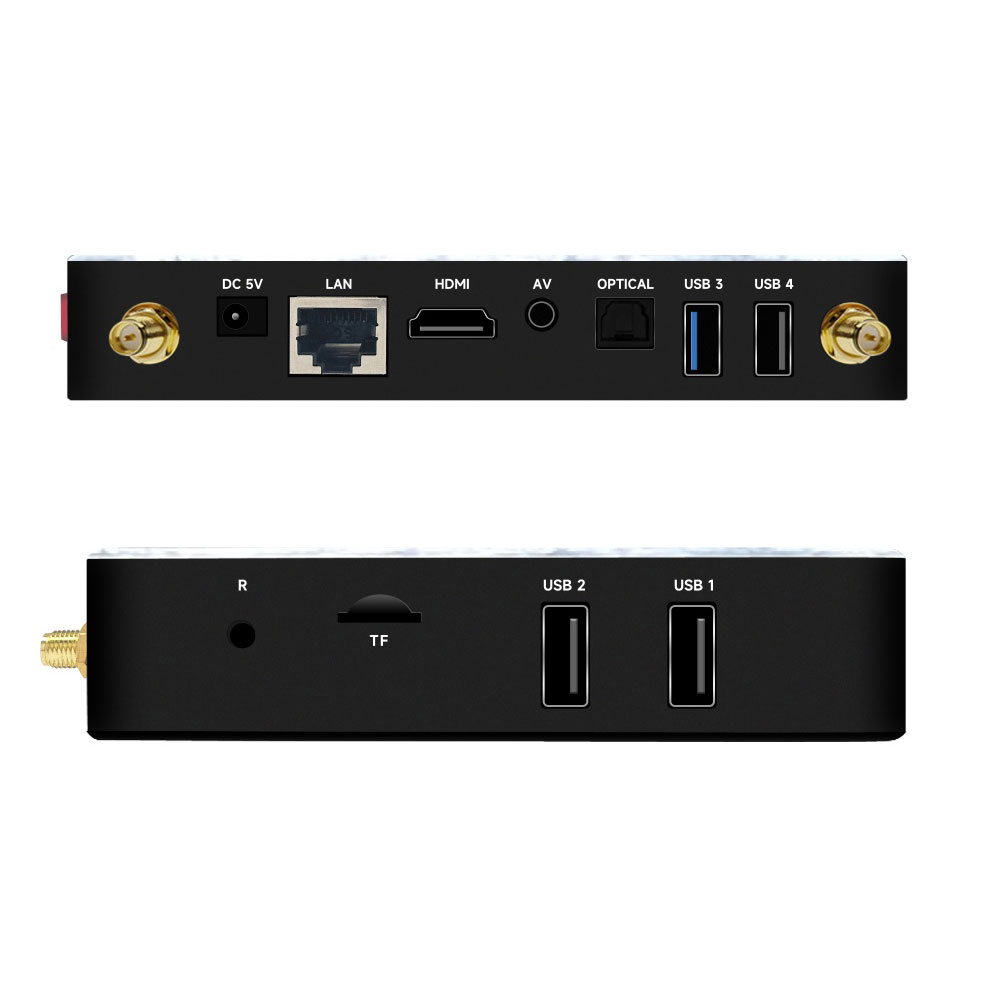

Interface1*TF Card: Max 128GB
1*HDMI OUT: HDMI 2.1 up to 8Kx4K@60FPS
3*USB 2.0: Support U hard disk data read
1*USB OTG: (USB 3.0)  Support U hard disk data read
1*Earphone: Audio output
1*SPDIF: SPDIF output
1*Ethernet:100M/1000M, standard RJ-45
1* DC: 5V/3A
1* Reset key
1* Power switch key
 Display1* LED digital tube display
Product
ColourBlack
Dimension(L*W*H)148*108*25MM

Additional information

Weight1 kg
Dimensions22 × 18 × 8 cm
CPU

Amlogic S928X, S928XA, S928X-K

RAM

4GB, 8GB LPDDR4

ROM

64GB, 128GB eMMC
